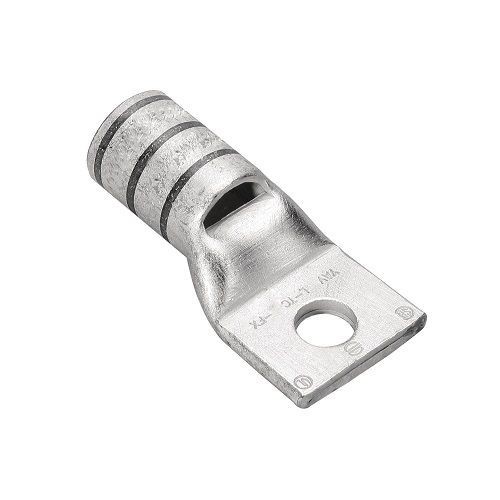

BURNDY® HYLUG™ YAV4CL5 YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Hole, 4 AWG Stranded Copper Conductor, Die Code: 40, 1/2 in Stud, Electro-Tin Plated Copper

Selected YAV4CL5BURNDY® HYLUG™ YAV4CL5 YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Hole, 4 AWG Stranded Copper Conductor, Die Code: 40, 1/2 in Stud, Electro-Tin Plated Copper
YAV4CL5BURNDY® HYLUG™ YAV4CL5 YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Hole, 4 AWG Stranded Copper Conductor, Die Code: 40, 1/2 in Stud, Electro-Tin Plated Copper

Short Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high conductivity electrolytic copper. The connectors are normally tinplated, lead plated or plated with proprietary BURNDY® brite finish to provide durable long lasting corrosion resistance. The connector design has been matched to the cable Size to provide the necessary physical strength requirements for reliable electrical performance.

Features

  • Uninsulated compression terminal manufactured from electrolytic copper and is for use on type AN aircraft cable, extra flexible conductors and commercial (code) conductors
  • The seamless tubing produces a double thick tongue and seamless barrel design provides a strong connector for demanding applications requiring high reliability
  • Used for other equipment that is subject to vibration or requiring dependable electrical performance
  • The benefits of YAV-L connectors are the same as YAV connectors for stranded conductors
  • For HYtool MY28, MY29-11 non-ratchet, MR4C ratchet, HYPRESS Y29NC, Y29B, DV4L die nest, Y29PL die indentor, (1) crimp, Y35, Y39, UV4L die nest, Y35P3 die indentor, (1) crimp, Y750, UV4L die nest, Y34PLA die indentor, (1) crimp installation tools
  • Bulk packaging
  • AN 4 aircraft cable size, 4 AWG copper stranded/solid conductor
  • Copper/flex conductor
  • Pure electrolytic tin plated
  • 1.3 in hole center to barrel end, 0.7 in hole center to barrel

Specification

Series
YAV-L
Specifications
1/2 in L Wire Strip
Stud Size
1/2 in
Tongue Type
Ring Straight
Type
1-Hole Heavy Duty Uninsulated
Standard & Approvals
ARRA Compliant, CSA Certified, RoHS Compliant, SAE-AS7928, UL 467 Military Specified Class 1 MS20659-133, Buy American Act Compliant
Minimum Order Qty
1
Order Interval
1
Barrel Size
0.47 in L
Barrel Type
Short
Conductor Size
4 AWG
Conductor Type
Stranded Copper
Die Code
40
Material
Electro-Tin Plated Copper
Voltage Rating
600 VAC to 35 kV
Tongue Size
0.71 in W x 0.06 in THK
Overall Length
1.68 in
Catalog ID
BURYAV4CL5
