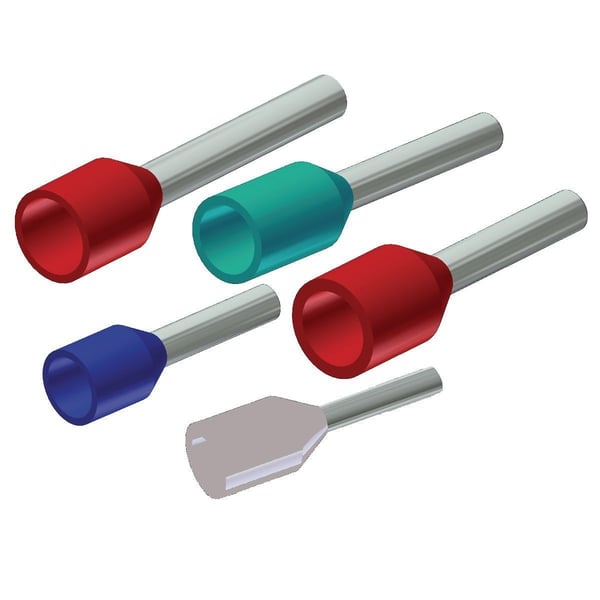

BURNDY® YF1408ID YF Series Type YF-I Single Insulated Bootlace Wire Ferrule, 14 AWG Stranded Copper Conductor, 0.591 in L, Electrolytic Copper, Blue

Selected YF1408IDBURNDY® YF1408ID YF Series Type YF-I Single Insulated Bootlace Wire Ferrule, 14 AWG Stranded Copper Conductor, 0.591 in L, Electrolytic Copper, Blue
YF1408IDBURNDY® YF1408ID YF Series Type YF-I Single Insulated Bootlace Wire Ferrule, 14 AWG Stranded Copper Conductor, 0.591 in L, Electrolytic Copper, Blue

Documents

Short Description

FERRULES are electrical connectors used to terminate stranded wires, creating a quality, reliable connection by ensuring each wire strand conducts current when properly crimped. Especially useful when multiple reconnections could be necessary within terminal blocks or other similar devices. No breakage of wire strands when wire is bent, under stress or in a vibration environment. Twin ferrule designs allow two individual stranded conductors to be connected to the same termination, most beneficial in jumpering or other similar applications. Both styles (single and twin) offer the same features and benefits. The YF-TOOL series has been designed to crimp both the bare (Type YF-UI) and insulated (Type YF-I) FERRULES.

Features

  • Smooth funnel entry to make wire insertion easier
  • Secure contacting even after multiple reconnections
  • Long term contact resistance
  • No fraying of strands
  • For D series YF3206TOOL, YF2610TOOL, YF2214TOOL and YF2210TOOL tools

Specification

Standard & Approvals
BAA Compliant, CSA C22.2 File No. LR68551, RoHS Compliant, UL508 File No. E131568, PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Minimum Order Qty
1
Order Interval
1
Application
For use on copper conductor
Type
Type YF-I Single Insulated Bootlace
Specifications
0.165 in Dia Funnel
Material
Electrolytic Copper
Finish
TiN Coated
Color
Blue
Conductor Size
14 AWG
Conductor Type
Stranded Copper
Length
0.591 in
Series
YF Series
Barrel Size
0.087 in ID x 0.098 in OD x 0.315 in L
Catalog ID
BURYF1408ID
