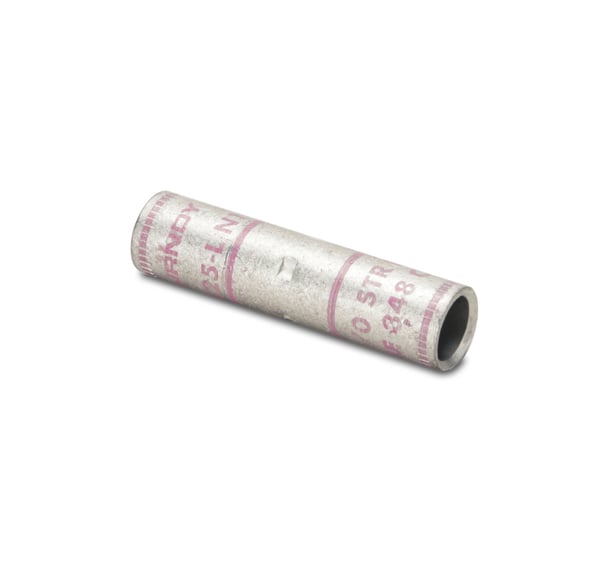

BURNDY® HYLINK™ YS26LBOX Type YS-L Standard Barrel Compression Butt Splice, 2/0 AWG Conductor, 2.17 in L, Short Barrel, Copper, Black

Selected BURNDY® HYLINK™ YS26LBOX Type YS-L Standard Barrel Compression Butt Splice, 2/0 AWG Conductor, 2.17 in L, Short Barrel, Copper, Black
BURNDY® HYLINK™ YS26LBOX Type YS-L Standard Barrel Compression Butt Splice, 2/0 AWG Conductor, 2.17 in L, Short Barrel, Copper, Black

Documents

Features

  • Center conductor stops provides a center wire stop for proper conductor insertion
  • die index 13 element A, tools, die set catalog number, and (number of crimps) mechanical MD7-34R tool, W26VT die, (2), MD6, OUR840 tool, X26RT die, (2), Y35, Y39, Y750 tool, U27RT-1 die, (1), Y46 tool, U27RT-1 die with PUADP-1 adapter (1)
  • Chamfered barrel style
  • 70 sq-mm Conductor size
  • Tapered end

Specification

Length
2.17 in
Material
Copper
Specifications
1 in Wire Strip Length
Temperature Rating
90 deg C
Type
Type YS-L
Voltage Rating
600 to 35000 VAC
Conductor Size
2/0 AWG
Barrel Type
Standard
Color
Black
Conductor Type
Commercial Stranded Copper
Finish
Tin Plated
Standard & Approvals
CSA Certified, RoHS Compliant, UL468A-468B Listed
