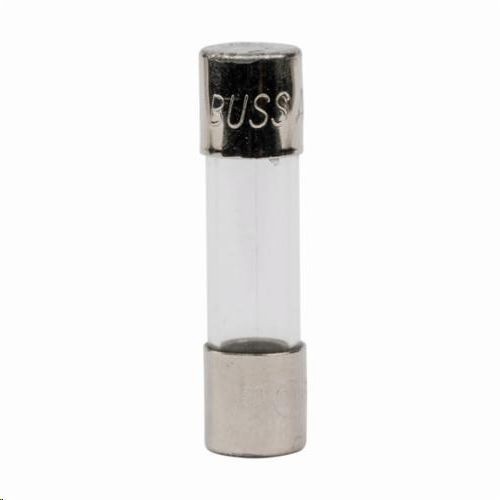

Bussmann® AGX-1/8 Fast Acting Electronic Fuse, 0.125 A, 250 VAC, 35 A, Cylindrical Body
Bussmann® AGX-1/8 Fast Acting Electronic Fuse, 0.125 A, 250 VAC, 35 A, Cylindrical Body
SKU: BUSAGX-1/8
Manufacturer Part Number: AGX-1/8
UPC: 051712704663
Documents
Features
- Nickel-plated brass endcap construction
- 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- 4 hr minimum at 110%, 60 min maximum at 135%, 5 sec maximum at 200% response time
- Size 8AG
Specification
| Interrupt Rating | 35 A |
|---|---|
| Material | Glass |
| Mounting Type | Holder |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=YMvqUyoETXk |
| Amperage Rating | 0.125 A |
| Body Size | 1/4 in Dia x 1 in L |
| Body Style | Cylindrical |
| Catalog ID | BUSAGX-1/8 |
| Element | Single |
| Voltage Rating | 250 VAC |
| Application | For instruments, electronic and small appliance circuits |
| Response Time | 5 sec |
| Standard & Approvals | cULus Guide JDYX, File E 19180 and Guide JDYX7, File E19180 |
| Terminal Type | Ferrule |
