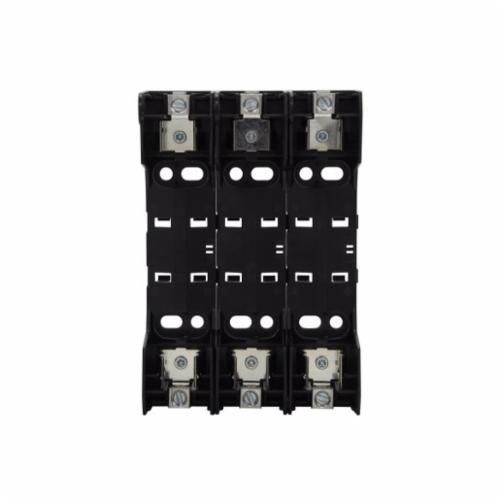

Bussmann® HM600 Ferrule Fuse Block, 600 VAC, 60 A, 14 to 2/8 to 2 AWG Wire, 3 Poles

Selected HM60060-3CRBussmann® HM600 Ferrule Fuse Block, 600 VAC, 60 A, 14 to 2/8 to 2 AWG Wire, 3 Poles
HM60060-3CRBussmann® HM600 Ferrule Fuse Block, 600 VAC, 60 A, 14 to 2/8 to 2 AWG Wire, 3 Poles

Documents

Short Description

Eaton’s Bussmann® series HM, JM and RM ferrule fuse blocks feature a modular design that allows assembly of the required poles at point of use. Available for Class H(K), J and R ferrule fuses, these blocks have features and accessories that add versatility, reduce labor and help enhance safety of any panel design. Fuse blocks can be ordered as 1-pole versions or factory configured 2- and 3-pole versions, and feature the smallest width in the market, consuming minimal panel space.

Features

  • Modular, snap together design provides tool-less assembly of multiple poles to save inventory and reduce assembly time
  • DIN-Rail and panel mount versatility allows one product to be used for multiple applications and lowers inventory cost
  • Optional see-through covers enhance safety with IP20 finger-safe protection, lock out tagout capability and optional open circuit indication
  • Easy circuit identification with available universal marker labels for fuse blocks and covers
  • 200 kA short circuit current rating
  • Flammability ratings of UL 94V0, self-extinguishing
  • Thermoplastic cover, tin-plated copper brass terminals
  • Combination power distribution block and fuse block reduces wire connections and total panel components, using up to 57 percent less panel space and reducing installation time and labor by an average of 33 percent when compared with traditional fuse block/power distribution block solutions
  • A 200,000 amps withstand rating helps achieve a higher assembly short circuit current rating (SCCR) for compliance with NEC® sections 110.10, 409.110(4), 409.22, 440.4(B), 670.3(A)(4) and 670.5
  • Available in 1-, 2- and 3-pole configurations to meet stocking requirements
  • To reduce inventory, assembly time and labor, modular single pole blocks snap together for tool-less assembly of multiple poles at point of use

Specification

Material
Thermoplastic
Mounting Type
DIN Rail
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Voltage Rating
600 V
Temperature Rating
-40 to 120 deg C
Fuse Diameter
0.81 in
Suitable For Use With
NOS Class H Ferrule Fuses
Standard & Approvals
UL Listed, E14853, Guide IZLT and IXLT2, CSA Certified, Class 6225-01, File 47235, RoHS Compliant
Dimensions
6.8 in L x 4.5 in W x 2.6 in H
Connection Type
Box Lug
Class
H
Catalog ID
BUSHM60060-3CR
Amperage Rating
35 to 60 A
Video
https://www.youtube.com/watch?v=YMvqUyoETXk
Fuse Length
3 in
Fuse Holder Code
Q
