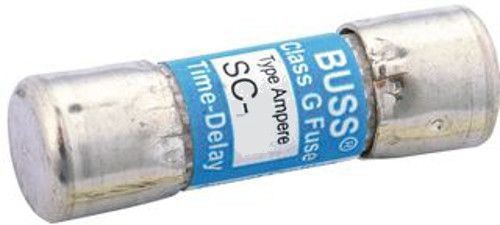

Bussmann® SC-20 Current-Limiting Time Delay Fuse, 20 A, 600 VAC/170 VDC, 100/10 kA Interrupt, Class G, Cylindrical Body

Selected SC-20Bussmann® SC-20 Current-Limiting Time Delay Fuse, 20 A, 600 VAC/170 VDC, 100/10 kA Interrupt, Class G, Cylindrical Body
SC-20Bussmann® SC-20 Current-Limiting Time Delay Fuse, 20 A, 600 VAC/170 VDC, 100/10 kA Interrupt, Class G, Cylindrical Body

Features

  • Most economical overcurrent protection solution compared to circuit breakers
  • For use in various non-demanding, general purpose applications
  • Compact branch-circuit units with high interrupting rating and current limitation
  • Most economical over current protection solution compared to circuit breakers
  • Size rejection by length helps prevent over fusing
  • 12 sec (minimum) at 200% of rated current

Specification

Interrupt Rating
100/10 kA
Material
Melamine
Mounting Type
Holder
Amperage Rating
20 A
Voltage Rating
600 VAC/170 VDC
Application
Fusible Branch Panelboards and HVAC Branch Circuit Protection
Body Style
Cylindrical
Class
G
Element
Dual
Response Time
12 sec
Standard & Approvals
UL 248-5, Guide JDDZ, File No. E4273, CSA C22.2 No. 248.5, Class 1422-01, File No. 53787, CE Certified, ROHS Complaint
Terminal Type
Ferrule
Body Size
0.41 in Dia x 1.41 in L
