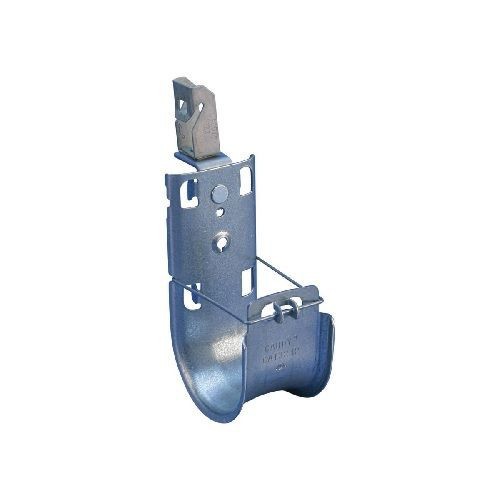

nVent CADDY CAT21HP123 CAT 21 J-Hook With Z-Purlin Clip, 1-5/16 in Dia, 60 lb Static Load, For Use With 50 sq-in CAT 5e, 40 sq-in CAT 6, 25 sq-in CAT 6A, CAT 7 and Fiber Optic Cables, Swivel Mount, Steel/Spring Steel
nVent CADDY CAT21HP123 CAT 21 J-Hook With Z-Purlin Clip, 1-5/16 in Dia, 60 lb Static Load, For Use With 50 sq-in CAT 5e, 40 sq-in CAT 6, 25 sq-in CAT 6A, CAT 7 and Fiber Optic Cables, Swivel Mount, Steel/Spring Steel
SKU: CADCAT21HP123
Manufacturer Part Number: CAT21HP123
UPC: 782856847663
Features
- Requires only a hammer to install
- Rotates 360 deg to support various directional runs of cable
- Provides optimal support for high-performance data cable, up to and including cat 5e, cat 6, cat 6A, cat 7 and fiber optic
- Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
- Rounded edges on j-hooks provide proper bend radius support for high performance data cables
- Cost effective alternative to expensive cable tray
Specification
| Load Capacity | 60 lb Static |
|---|---|
| Suitable For Use With | 50 sq-in CAT 5e, 40 sq-in CAT 6, 25 sq-in CAT 6A, CAT 7 and Fiber Optic Cables |
| Size | 1-5/16 in Dia |
| Series | CAT 21 |
| Mounting Type | Swivel |
| Material | Steel/Spring Steel |
| Finish | Pre-Galvanized/Caddy® Armour |
| Standard & Approvals | ANSI/TIA 568/569, cULus Listed, EN 50174-2, ISO/IEC 14763-2 |
| Specifications | 2.29 sq-in, 0.06 to 0.1 in THK Flange |
