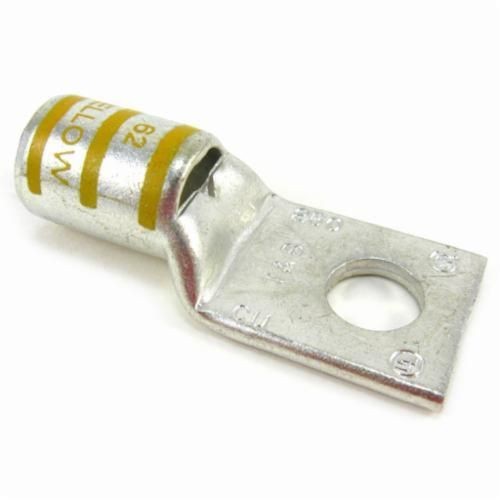

Color-Keyed® 58166 58100 1-Hole Non-Insulated Compression Lug With Peep Hole, 4/0 AWG Flexible Copper Conductor, Die Code: 62, 5/8 in Stud, Copper

Selected 58166Color-Keyed® 58166 58100 1-Hole Non-Insulated Compression Lug With Peep Hole, 4/0 AWG Flexible Copper Conductor, Die Code: 62, 5/8 in Stud, Copper
58166Color-Keyed® 58166 58100 1-Hole Non-Insulated Compression Lug With Peep Hole, 4/0 AWG Flexible Copper Conductor, Die Code: 62, 5/8 in Stud, Copper

Documents

Short Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Features

  • Peep hole
  • High conductivity wrought copper
  • 4/0 AWG flex conductor size

Specification

Material
Copper
Stud Size
5/8 in
Tongue Style
Straight
Type
1-Hole
Voltage Rating
35 kV
Standard & Approvals
UL Listed, CSA Certified, RoHS Compliant
Conductor Size
4/0 AWG
Color Code
Yellow
Conductor Type
Copper
Die Code
62
Overall Length
3.03 in
Barrel Style
Standard
Tongue Size
1.58 in L x 1.25 in W x 0.15 in THK
Barrel Size
0.79 in Dia
