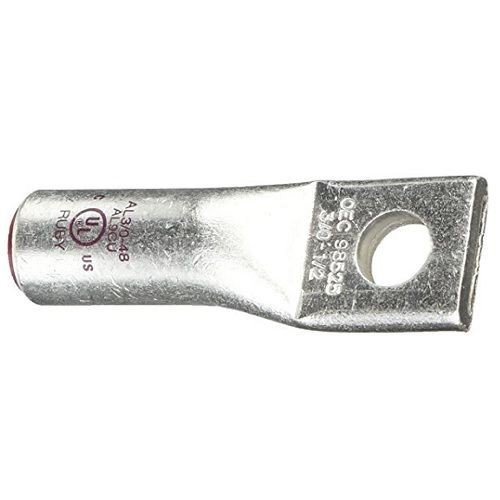

Color-Keyed® 60144 1-Hole Non-Insulated Compression Lug, 3/0 AWG Aluminum/Copper Conductor, Die Code: 60, 1/2 in Stud, Aluminum

Selected Color-Keyed® 60144 1-Hole Non-Insulated Compression Lug, 3/0 AWG Aluminum/Copper Conductor, Die Code: 60, 1/2 in Stud, Aluminum
Color-Keyed® 60144 1-Hole Non-Insulated Compression Lug, 3/0 AWG Aluminum/Copper Conductor, Die Code: 60, 1/2 in Stud, Aluminum

Documents

Short Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Features

  • Easily matched to the correct Color-Keyed® installing die for positive compressions
  • Hardened steel dies compress connector around cable, changing round strands to polygonal shapes and cold flowing strands and connector into a solid, homogenous mass
  • Long compression areas ensure complete contact
  • Multiple compressions prevent creep of aluminum conductors
  • Filled with high temperature oxide inhibitor compound
  • Electro tin plating prevents electrolytic corrosion of copper to ensure lowest contact resistance
  • Perform equally well on both aluminum and copper conductors
  • Round hole
  • High conductivity wrought aluminum construction

Specification

Material
Aluminum
Minimum Order Qty
1
Order Interval
1
Type
1-Hole
Standard & Approvals
UL File No. E9809, CSA Certified, RoHS Compliant
Color Code
Ruby
Voltage Rating
35 kV
Tongue Style
Straight
Tongue Size
1.41 in L x 1.06 in W x 0.22 in THK
Temperature Rating
90 deg C
Die Code
60
Conductor Type
Aluminum/Copper
Conductor Size
3/0 AWG
Catalog ID
T-B60144
Barrel Style
Blind End/Long
Barrel Size
0.77 in Dia
Overall Length
3.15 in
Stud Size
1/2 in
