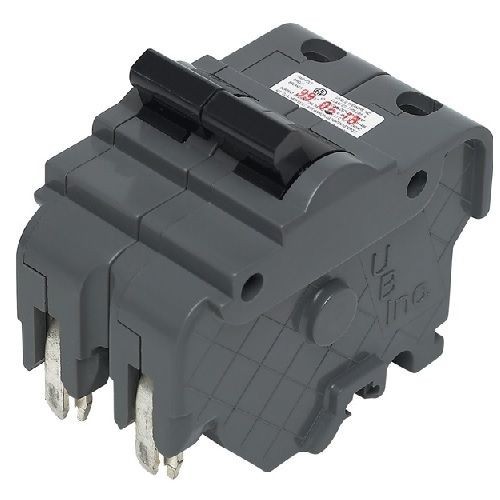

Connecticut Electric UBIF250N Type NA HACR Rated Thick Replacement Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
Connecticut Electric UBIF250N Type NA HACR Rated Thick Replacement Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
SKU: CESUBIF-250N
Manufacturer Part Number: UBIF250N
UPC: 094925019438
Features
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Interrupt Rating | 10 kA |
| Material | DMC |
| Number Of Poles | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator Type | Handle |
| Amperage Rating | 50 A |
| Catalog ID | CESUBIF-250N |
| Connection Type | Push-On |
| Dimensions | 3.36 in L x 2 in W x 2.55 in H |
| Phase | 1 |
| Series | UBIF |
| Temperature Rating | 40 deg C |
| Trip Type | Thermal Magnetic |
| Type | Type NA HACR Rated Thick |
| Voltage Rating | 120/240 VAC |
| Wire Size | 14 to 6 AWG |
| Application | For use in Federal Pacific Electric® load centers |
| Standard & Approvals | ETL Listed, CE Certified, UL 489 |
