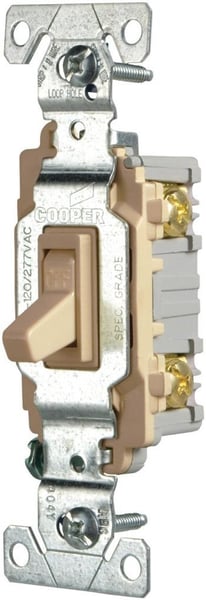

EATON Arrow Hart™ 1242-7FLA-BOX 4-Way Standard Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating

Selected FilesEAG1242 7LA BOX
FilesEAG1242 7LA BOX

Documents

Short Description

Longer, wider strap on Toggle Switches provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to job site breakage. Patented built-in wire looper for pre-looping. Three way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted-, Phillips, and Robertson-head tools for installations in both the U.S. and Canada.

Features

  • Patent pending spring cup toggle design for robust actuation
  • 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
  • Terminal screws backed out and ready for wiring
  • Tri-combo head mounting and terminal screws ease installation
  • Patented built-in wire stripper for No. 14 and 12 wire to speed installation
  • Standard grade
  • Grounding
  • Nylon toggle
  • 2.4 in L back
  • 3.28 in L screw to screw
  • 1/2 hp at 120 VAC, 2 hp at 240 VAC
  • Framed toggle
  • Side and push wire connection
  • UL 94-V2 Flammability

Specification

Material
Polycarbonate
Terminal Type
Screw
Voltage Rating
120/277 VAC
Application
Industrial
Amperage Rating
15 A
Color
Light Almond
Environmental Conditions
-20 to 60 deg C
Actuator
Toggle
Standard & Approvals
cULus Listed to UL 20 File No. E18704, UL Verified to Federal Spec WS-896-F, RoHS Compliant
Operating Cycles
30000
Dimensions
1.31 in W x 1.05 in D
Mounting
Wall
Type
4-Way
Power Rating
1/2 hp/2 hp
