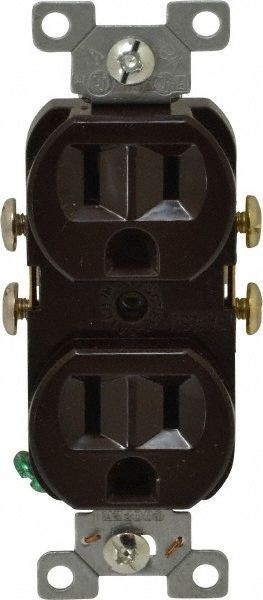

EATON Arrow Hart™ Eaton Wiring Devices CR15B CR15 Duplex Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
EATON Arrow Hart™ Eaton Wiring Devices CR15B CR15 Duplex Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
SKU: EAGCR15B
Manufacturer Part Number: CR15B
UPC: 032664488900
Documents
Short Description
Features
- Galvanized steel, wrap-around yoke mounting strap for superior assembly security; extra length/width helps reach large panel cutouts for Code Compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
- Screw-Catch feature on duplex devices speeds mounting of wallplates
- Tamper Resistant receptacles provide compliance with 2014 NEC® Article 406.12 that states that all 15A & 20A, 125V receptacles installed in dwelling units must be tamper resistant
- Flush mounting
- Screw connection
- 2000 V dielectric strength
- UL 94 V-2 flammability rating
- 14 - 10 AWG
Specification
| Grade | Commercial |
|---|---|
| Material | PVC |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=wVyZtLMLREA |
| Amperage Rating | 15 A |
| Catalog ID | EAGCR15B |
| Color | Brown |
| Dimensions | 4.19 in H x 1.3 in W x 0.82 in D |
| Temperature Rating | -4 to 158 deg F |
| Terminal Type | Side Wired |
| Voltage Rating | 125 VAC |
| Standard & Approvals | cULus Listed, CSA Certified, NOM Certified, UL Listed, RoHS Complaint |
