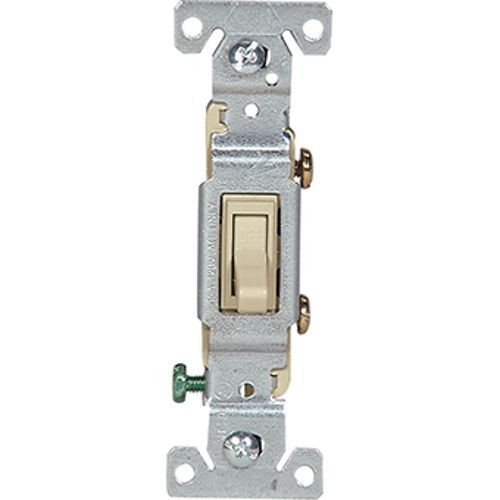

EATON Arrow Hart CS220V Heavy Duty Specification Grade AC Toggle Switch, 120/277 V, 20 A, 1/2 hp Power Rating

Selected EATON Arrow Hart CS220V Heavy Duty Specification Grade AC Toggle Switch, 120/277 V, 20 A, 1/2 hp Power Rating
EATON Arrow Hart CS220V Heavy Duty Specification Grade AC Toggle Switch, 120/277 V, 20 A, 1/2 hp Power Rating

Short Description

Commercial Grade - AC Quiet Switches - Side Wire. Heavy duty cam action mechanism insures quiet switch action. Side wire terminals accept up to #10 solid or stranded wire. Ground screw terminal standard. 120/277V/AC rating ideal for fluorescent lighting fixtures typical in commercial applications.

Features

  • Patent pending spring cup toggle design for robust actuation
  • Terminals accept up to No. 10 AWG solid or stranded
  • 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
  • Terminal screws backed out and ready for wiring
  • Tri-combo head mounting and terminal screws ease installation
  • Color-coded strap marking identifies amperage
  • Specification grade
  • 14 - 10 AWG terminal accommodation
  • Heavy duty
  • Nylon toggle
  • 2.38 in L back
  • 3.28 in L screw to screw
  • Compact toggle
  • Side wire connection
  • UL 94-V0 Flammability

Specification

Material
PVC
Mounting
Wall
Number Of Poles
2
Operating Cycles
50000
Minimum Order Qty
1
Order Interval
1
Actuator
Toggle
Amperage Rating
20 A
Catalog ID
EAGCS220V
Color
Ivory
Dimensions
1.13 in W x 0.87 in D
Environmental Conditions
-40 to 65 deg C
Power Rating
1 hp/2 hp
Terminal Type
Screw
Voltage Rating
120/277 V
Standard & Approvals
CSA Certified to C22.2 No. 111 File No. 10016 (6241-05), cULus Listed to UL 20 File No. E18704, RoHS Compliant, UL Verified to Federal Specification WC-896G
