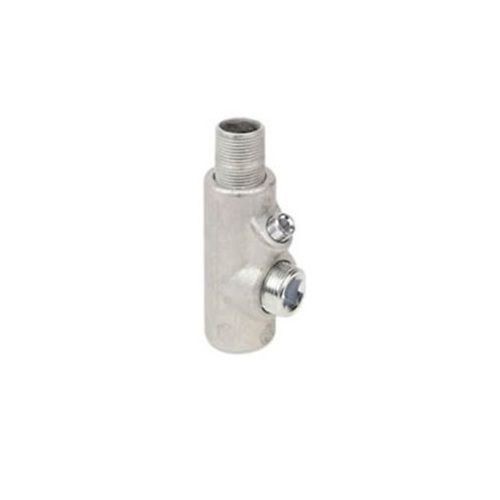

EATON Crouse-Hinds EYS1016 Conduit Sealing Fitting, 4 in FNPT, For Use With Conduit System, Copper-Free Aluminum, Natural
EATON Crouse-Hinds EYS1016 Conduit Sealing Fitting, 4 in FNPT, For Use With Conduit System, Copper-Free Aluminum, Natural
SKU: CHNEYS1016
Manufacturer Part Number: EYS1016
UPC: 782274365046
Features
- Minimum turning radius
- Large openings with threaded closures to provide easy access to conduit hubs for making dams
- Integral bushings in conduit hubs to protect conductor insulation from damage
- Taper tapped hubs to ensure ground continuity
Specification
| Material | Copper Free Aluminum |
|---|---|
| Mounting Type | Surface |
| Finish | Natural |
| Size | 4 in FNPT |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, NEC/CEC Certified, Class I, Division 1 2, Group A B C D, Class II, Division 1 2, Group E F G, Class III, UL 886/1203, CSA C22.2 |
| Application | Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures, limit explosions to the sealed off enclosure, limit pre-compression or pressure piling in conduit systems |
| Suitable For Use With | Conduit System |
