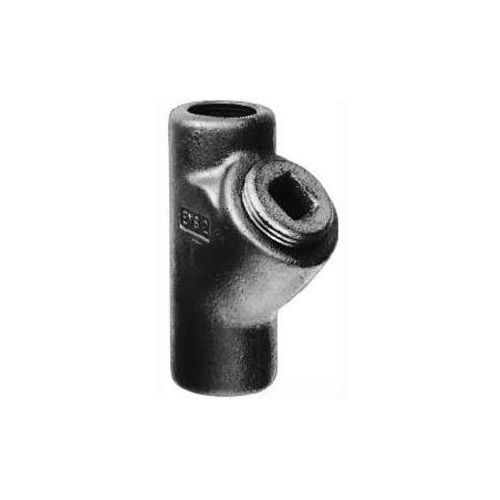

EATON Crouse-Hinds Condulet® EYS2 SA Dust-Ignitionproof Explosionproof Conduit Sealing Fitting, 3/4 in FNPT, For Use With Vertical Position Conduit System, Copper-Free Aluminum, Natural
EATON Crouse-Hinds Condulet® EYS2 SA Dust-Ignitionproof Explosionproof Conduit Sealing Fitting, 3/4 in FNPT, For Use With Vertical Position Conduit System, Copper-Free Aluminum, Natural
SKU: CHNEYS2-SA
Manufacturer Part Number: EYS2 SA
UPC: 782274275734
Documents
Features
- Minimum turning radius
- Large openings with threaded closures to provide easy access to conduit hubs for making dams
- Integral bushings in conduit hubs to protect conductor insulation from damage
- Taper tapped hubs to ensure ground continuity
- Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures
- Limit explosions to the sealed OFF enclosure
- Limit pre-compression or pressure piling in conduit systems
- Ferroalloy iron alloy and/or steel plugs, steel removable nipples
- 1-29/32 in turning radius
Specification
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, CSA C22.2, Class I, Division 1, 2, Groups B,C, D Class II, Division 1, Groups E, F, G Class II, Division 2, Groups F, G Class III, UL 1203, UL 886 |
|---|---|
| Suitable For Use With | Vertical Position Conduit System |
| Mounting Type | Surface |
| Type | Dust-Ignitionproof Explosionproof Female Hub |
| Finish | Natural |
| Size | 3/4 in FNPT |
| Dimensions | 3-12/16 in L x 1-1/2 in W |
| Material | Copper Free Aluminum |
| Series | EYS |
