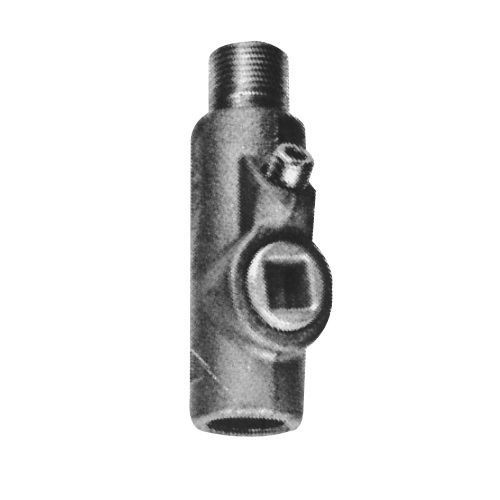

Crouse-Hinds EYS216 SA Conduit Sealing Fitting, 3/4 in, Aluminum, Electro-Galvanized

Selected Crouse-Hinds EYS216 SA Conduit Sealing Fitting, 3/4 in, Aluminum, Electro-Galvanized
Crouse-Hinds EYS216 SA Conduit Sealing Fitting, 3/4 in, Aluminum, Electro-Galvanized

Short Description

EATON's Crouse-Hinds series is designed to the highest standard of safety and productivity to keep people safe and plants running reliably. The more demanding the environment, the likelier you are to find EATON products at the center of operations.

Features

  • Male x Female threaded connection
  • Horizontal/vertical position
  • Minimum turning radius
  • Large openings with threaded closures to provide easy access to conduit hubs for making dams
  • Integral bushings in conduit hubs to protect conductor insulation from damage
  • Taper-tapped hubs to ensure ground continuity
  • Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures
  • Limit explosions to the sealed off enclosure
  • 1-5/32 in turning radius
  • 2 cu-in for vertical position
  • 2 cu-in for horizontal position
  • Electro galvanized with aluminum acrylic paint
  • Copper free aluminum

Specification

Material
Aluminum
Size
3/4 in
Finish
Electro-Galvanized
Dimensions
3-11/16 in H x 1-1/4 in W
Standard & Approvals
CSA C22.2, Class I Div 1 2 Group A B C D, Class II Div 1 Group EF G, Class II Div 2 Group F G, Class III Enclosure, RoHS Complaint, UL 886
Application
For limiting precompression or pressure piling in conduit systems
Series
EYS 116
