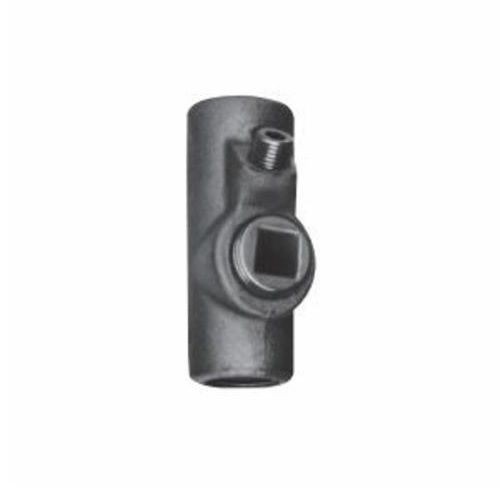

EATON Crouse-Hinds EYS816 Conduit Sealing Fitting, 3 in MNPT x 3 in FNPT, For Use With Conduit System, Ductile Iron/Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
EATON Crouse-Hinds EYS816 Conduit Sealing Fitting, 3 in MNPT x 3 in FNPT, For Use With Conduit System, Ductile Iron/Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
SKU: CHNEYS816
Manufacturer Part Number: EYS816
UPC: 782274365022
Documents
Features
- Minimum turning radius
- Large openings with threaded closures to provide easy access to conduit hubs for making dams
- Integral bushings in conduit hubs to protect conductor insulation from damage
- Taper tapped hubs to ensure ground continuity
Specification
| Mounting Type | Surface |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Suitable For Use With | Conduit System |
| Application | Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures, limit explosions to the sealed off enclosure, limit pre-compression or pressure piling in conduit systems |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, NEC/CEC Certified, Class I, Division 1 2, Group B C D, Class II, Division 1 2, Group E F G, Class III, UL 886/1203, CSA C22.2 |
| Size | 3 in MNPT x 3 in FNPT |
| Finish | Electrogalvanized/Aluminum Acrylic Painted |
| Catalog ID | CHNEYS816 |
| Material | Ductile Iron/Feraloy® Iron Alloy |
