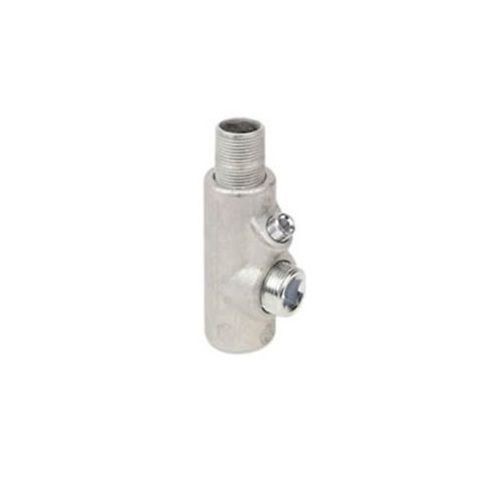

EATON Crouse-Hinds EYS916 Hub Conduit Sealing Fitting, 3-1/2 in MNPT x 3-1/2 in FNPT, For Use With Vertical/Horizontal Positions, Feraloy® Iron Alloy/Ductile Iron, Aluminum Acrylic Painted/Electro-Galvanized
EATON Crouse-Hinds EYS916 Hub Conduit Sealing Fitting, 3-1/2 in MNPT x 3-1/2 in FNPT, For Use With Vertical/Horizontal Positions, Feraloy® Iron Alloy/Ductile Iron, Aluminum Acrylic Painted/Electro-Galvanized
SKU: CHNEYS916
Manufacturer Part Number: EYS916
UPC: 782274365039
Short Description
Features
- Minimum turning radius
- Large openings with threaded closures to provide easy access to conduit hubs for making dams
- Integral bushings in conduit hubs to protect conductor insulation from damage
- Taper-tapped hubs to ensure ground continuity
- Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures
- Limit explosions to the sealed OFF enclosure
- 3-7/16 in turning radius
- 72 cu-in for vertical position
- 82 u-in for horizontal position
- With cover removed
Specification
| Material | Feraloy® Iron Alloy/Ductile Iron |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | CHNEYS916 |
| Finish | Electro-Galvanized/Aluminum Acrylic Painted |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, CSA C22.2, Class I Div 1 2 Group B C D, Class II Div 1 2 Group EF G, Class III Enclosure, UL 886 |
| Application | For limiting precompression or pressure piling in conduit systems |
| Type | Male/Female Hub |
| Suitable For Use With | Vertical/Horizontal Positions |
| Size | 3-1/2 in MNPT x 3-1/2 in FNPT |
| Series | EYS 116 |
| Dimensions | 4-3/4 in W x 9-3/16 in H |
