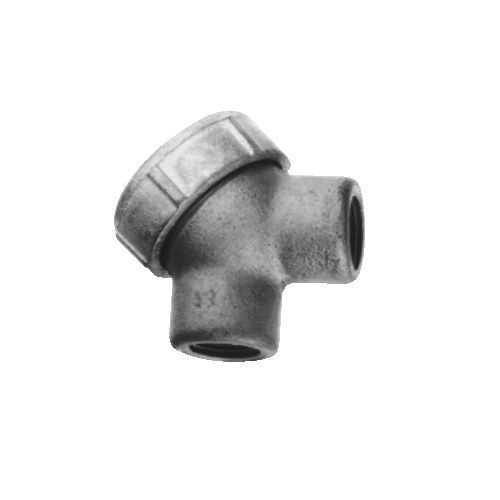

Crouse-Hinds Condulet® LBY45 Service Entrance Pulling Elbow, 1-1/4 in Trade, 90 deg, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
Crouse-Hinds Condulet® LBY45 Service Entrance Pulling Elbow, 1-1/4 in Trade, 90 deg, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
SKU: CHNLBY45
Manufacturer Part Number: LBY45
UPC: 782274521350
Documents
Features
- Maximum volume for bends within a compact overall size
- Screw on cover for ease of installation and removal
- Cover openings on an angle, permitting conductors to be pulled straight through either hub
- Taper tapped hubs and integral bushing for standard threaded conduit
- Make 90 deg bends in conduit systems where space is limited
- Act as pull outlets
- Provide access to conductors for maintenance and future system changes
Specification
| Material | Feraloy® Iron Alloy |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Angle | 90 |
| Catalog ID | CHNLBY45 |
| Dimensions | 3-25/32 in L x 2-15/16 in W |
| Finish | Electrogalvanized/Aluminum Acrylic Painted |
| Suitable For Use With | Rigid Conduit |
| Trade Size | 1-1/4 in |
| Application | Act as service entrance elbows between service entrance and vertical weatherhead conduit runs, hazardous areas |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, NEC/CEC Certified, Class I, Division 1 2, Group C D, Class II, Division 1, Group E F G, Class II, Division 2, Group F G, Class III, UL 886/514B/1203, CSA C22.2, Federal Specification W-C-586a |
| Includes | Cover |
