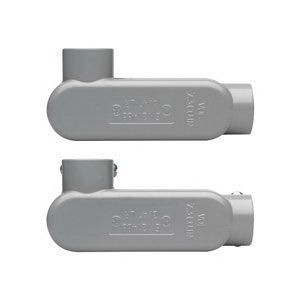

EATON Crouse-Hinds Condulet® SnapPack™ LR55 CGN Type LR Conduit Outlet Body With Cover and Neoprene Gasket, 1-1/2 in Hub, 5 Form, 35.8 cu-in Capacity, Die Cast Copper-Free Aluminum, Epoxy Powder Coated
EATON Crouse-Hinds Condulet® SnapPack™ LR55 CGN Type LR Conduit Outlet Body With Cover and Neoprene Gasket, 1-1/2 in Hub, 5 Form, 35.8 cu-in Capacity, Die Cast Copper-Free Aluminum, Epoxy Powder Coated
SKU: CHNLR55CGN
Manufacturer Part Number: LR55 CGN
UPC: 784564744333
Features
- Die cast copper-free aluminum construction is lightweight and corrosion resistant for long, reliable service
- Epoxy powder coat finish provides additional corrosion resistance and an aesthetically pleasing appearance
- Domed aluminum cover provides additional cubic capacity
- Perforated center gasket that can be easily removed, if desired
Specification
| Hub Size | 1-1/2 in |
|---|---|
| Material | Die Cast Copper Free Aluminum |
| Number of Hubs | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Gray |
| Connection Type | Threaded/Set Screw |
| Finish | Epoxy Powder Painted |
| Form | 5 |
| Type | Type LR |
| Includes | Hubs, Tri Head Set Screws |
| Dimensions | 7.87 in L x 3.5 in W x 2.85 in H |
| Catalog ID | CHNLR55CGN |
| Capacity | 35.8 |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL File No. E-15022, cUL Listed |
