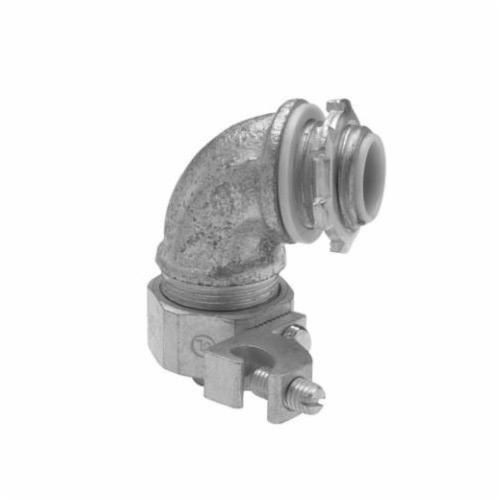

Crouse-Hinds Liquidator™ LTB30090G Insulated Liquidtight Conduit Connector With 8 to 1/0 AWG Aluminum Grounding Lug, 3 in Trade, 90 deg, Malleable Iron, Electro-Plated Zinc

Selected Crouse-Hinds Liquidator™ LTB30090G Insulated Liquidtight Conduit Connector With 8 to 1/0 AWG Aluminum Grounding Lug, 3 in Trade, 90 deg, Malleable Iron, Electro-Plated Zinc
Crouse-Hinds Liquidator™ LTB30090G Insulated Liquidtight Conduit Connector With 8 to 1/0 AWG Aluminum Grounding Lug, 3 in Trade, 90 deg, Malleable Iron, Electro-Plated Zinc

Documents

Short Description

Cooper Crouse-Hinds liquidtight product line offers high-quality, high performance fittings. Designed to the toughest standards and integrating the latest technology, not only do you get a reliable and durable product, you also get one that reduces installation time and cost. Our versatile lines of liquidtight fittings are designed for a wide range of applications. Choose from our Liquidator, LiQuik, Zinc Die Cast, Non-Metallic or Low Profile liquidtight fittings. Whatever your needs are, you can be assured that our liquidtight fittings will stand up to the most demanding, wet or corrosive environments.

Features

  • Liquidtight, raintight, oiltight for protection and long life in wet, dusty and corrosive environments
  • Hex shaped gland nut allows for easy wrenching, providing a fast, tight installation
  • Suitable for wet locations
  • Reusable, long ferrule prevents pull-out and tight bend conduit pop-out
  • Furnished with locknut and sealing ring
  • Third party certified
  • Liquidator™ fittings are used when liquidtight conduit is in tough, industrial and corrosive applications
  • Thermoplastic elastomer sealing gasket effectively seals out water, oil, dust and dirt
  • Locknut bites into box
  • Cupped long grounding ferrule is distortion free
  • Malleable iron gland nut
  • Steel ferrule and steel or aluminum locknut
  • Polyethylene gland nut sealing ring
  • Thermoplastic elastomer sealing gasket

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Finish
Electro-Plated Zinc
Trade Size
3 in
Type
Insulated Threaded
Application
Flexible Metal Conduit, Wiring of Machine Tools, Motors, Transformers, Food Processing Equipment, Robotics, Air Conditioning Units, Illuminated Store Front Signs and Billboards
Suitable For Use With
Liquidator™ Flexible Metallic Conduit
Dimensions
4.188 in OD x 10.938 in W
Catalog ID
CHNLTB30090G
Angle
90
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, Class I Division 2, Class II Divisions 1, 2, Class III Divisions 1, 2 NEC Approved, cUL Listed, CSA C22.2 No. 18F, CSA C22.112, UL Listed, File No. E-19189, UL 514B, UL 467
