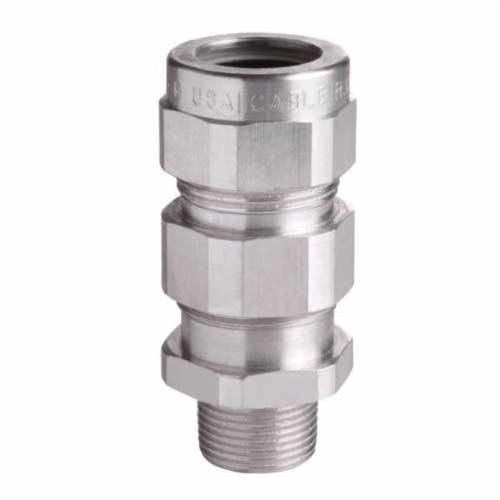

Crouse-Hinds TMC7247 Cable Gland, 2-1/2 in Trade, 1.99 to 2.72 in Outer Sheath, 1.93 to 2.47 in Armor Cable Openings, Aluminum, Nickel Plated

Selected TMC8302Crouse-Hinds TMC7247 Cable Gland, 2-1/2 in Trade, 1.99 to 2.72 in Outer Sheath, 1.93 to 2.47 in Armor Cable Openings, Aluminum, Nickel Plated
TMC8302Crouse-Hinds TMC7247 Cable Gland, 2-1/2 in Trade, 1.99 to 2.72 in Outer Sheath, 1.93 to 2.47 in Armor Cable Openings, Aluminum, Nickel Plated

Documents

Short Description

Eaton's Crouse-Hinds series is designed to the highest standard of safety and productivity to keep people safe and plants running reliably. The more demanding the environment, the likelier you are to find Eaton products at the center of operations.

Features

  • Watertight seal on outer sheath of cable
  • Standard neoprene seal suitable for use in operating temperatures -25 to 60 deg C
  • Armoured, TECK armoured and non-armoured gland type
  • NEMA 4 and IP56
  • 1.438 in thread length
  • 1.93 - 2.47 in armour range
  • 4.75 in gland length
  • MC and TECK cable
  • Neoprene seal

Specification

Material
Aluminum
Trade Size
2-1/2 in
Application
For Wet Locations
Connection Type
MNPT
Cable Type
MC/Teck
Cable Openings
1.99 - 2.719 in
Dimensions
6.19 in L x 4 in W x 4 in H
Standard & Approvals
cULus E36379, RoHs Compliant
Type
Through Bulkhead
Temperature Rating
-25 to 60 deg C
