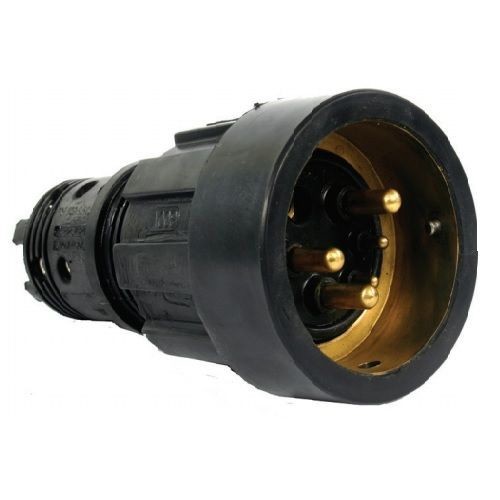

Crouse-Hinds Quik-Loc™ X8347-1D Female Plug, 600 VAC/VDC, 325 A, 3 W Power Rating

Selected CHNX8347 1D
CHNX8347 1D

Documents

Short Description

With its Crouse-Hinds series, Eaton provides a wide range of medium voltage Quik-Loc™ Connectors designed for service under the most severe mining conditions. The resilient elastomeric molded construction provides a watertight, corrosion-resistant assembly ensuring rugged, dependable service. These connectors are field attachable and are equipped with color-coded wiring terminals for easy assembly. Typical applications include drills, conveyors, heavy equipment, shuttle cars and power distribution.

Features

  • Corrosion resistant - Molded neoprene components (insert body, sleeve, grommets), neoprene covered alloy couplings and stainless steel clamps are unaffected by most chemicals and acids
  • Field attachable - Quick field assembly requires standard tools with color coded wiring terminals indicating proper conductor locations
  • Dual set-screw design enhances connection
  • Quick-disconnect - Couplers with "pin and groove" design support engagement and disengagement in just 3/4 turn
  • Couplers revolve freely on replaceable ball bearings
  • Safe - All metal components are thoroughly insulated using a barrier of molded neoprene
  • A reversed ground pin assures positive polarization
  • Watertight - Compression fit of neoprene components and cable-hugging grommets provide a moisture-tight seal
  • Positive water seal between mated connectors is provided by an O-ring type seal molded to the connector
  • For AC 3 power + 1 ground with pilot circuit contacts
  • 4/0 AWG wire

Specification

Material
Neoprene
NEMA Rating
3R
Power Rating
3 W
Voltage Rating
600 VAC/VDC
Application
Industrial Drills, Shuttle Cars, Conveyors, Power Distribution, Slusher Hoists, Motors, Heavy Equipment, Ship-to-Shore Power, Waste Water, Submersible Pumps, Longwalls and Mining's Kids
Standard & Approvals
ARRA Compliant, BAA Compliant, MSHA Approved, RoHS Compliant
Includes
3325656-9 Protective Cap
Dimensions
6-7/16 in Dia x 21-15/16 in L
Amperage Rating
325 A
