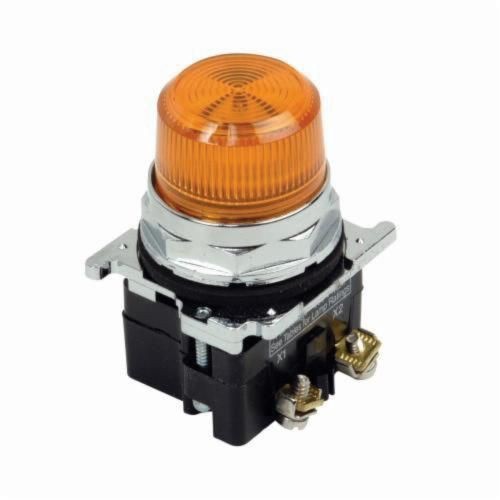

EATON 10250T197LGP24 10250T Full Voltage Heavy Duty Oiltight Watertight Standard Actuator Indicating Light, 24 VAC/VDC, 0.5 A, Fresnel Lens, Panel Mount

Selected 10250T197LGP24EATON 10250T197LGP24 10250T Full Voltage Heavy Duty Oiltight Watertight Standard Actuator Indicating Light, 24 VAC/VDC, 0.5 A, Fresnel Lens, Panel Mount
10250T197LGP24EATON 10250T197LGP24 10250T Full Voltage Heavy Duty Oiltight Watertight Standard Actuator Indicating Light, 24 VAC/VDC, 0.5 A, Fresnel Lens, Panel Mount

Documents

Short Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

Features

  • Contact blocks feature enclosed silver contacts with pointed reliability nibs
  • To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
  • Fresnel plastic green flat round lens
  • Bayonet base lamp
  • Full voltage type
  • 2.4 in L x 2.1 in W x 3.2 in H
  • Pressure plate terminal connection
  • Watertight/Oiltight

Specification

Lamp Type
Incandescent/LED
Material
Die Cast Zinc
Mounting Type
Panel
Operator Type
Standard
Minimum Order Qty
1
Order Interval
1
Bezel/Housing
Chrome Plated Metal
Catalog ID
C-H10250T197LGP24
Enclosure Type
NEMA 3/3R/4/4X/12/13/IP65
Finish
Chrome Plated
Series
10250T
Size
30.5 mm
Type
Heavy Duty
Voltage Rating
24 VAC/VDC
Application
Automation and Logic Control Equipment
Standard & Approvals
CE, UL Listed, CSA Certified
