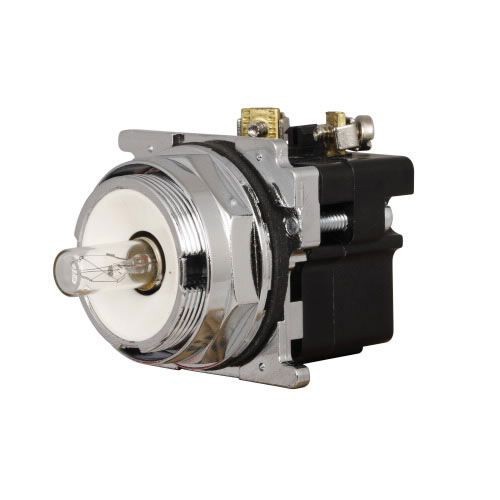

EATON 10250T202N Heavy Duty Oil/Watertight Standard Actuator Indicating Light, 240 VAC/VDC

Selected 10250T202NEATON 10250T202N Heavy Duty Oil/Watertight Standard Actuator Indicating Light, 240 VAC/VDC
10250T202NEATON 10250T202N Heavy Duty Oil/Watertight Standard Actuator Indicating Light, 240 VAC/VDC

Documents

Short Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc die-cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

Features

  • Enclosed silver contacts with reliability nibs
  • Diaphragm seals with drainage holes
  • Grounding nibs on the operator casing
  • Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
  • Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
  • Grounding nibs bit through paint and other coatings to provide secure ground
  • 120 MB unit type light
  • Standard actuator
  • Resistor light unit
  • 2.4 in L x 2.1 in W x 3.4 in H dimension

Specification

Lamp Type
Incandescent
Series
10250T
Size
30.5 mm
Type
Heavy Duty Oiltight/Watertight
Voltage Rating
240 VAC/VDC
Application
For slow make and break contact operation
Standard & Approvals
UL Listed, CSA Certified, RoHS Compliant
Bezel/Housing
Die Cast Zinc
Enclosure Type
NEMA 3/3R/4/4X/12/13
