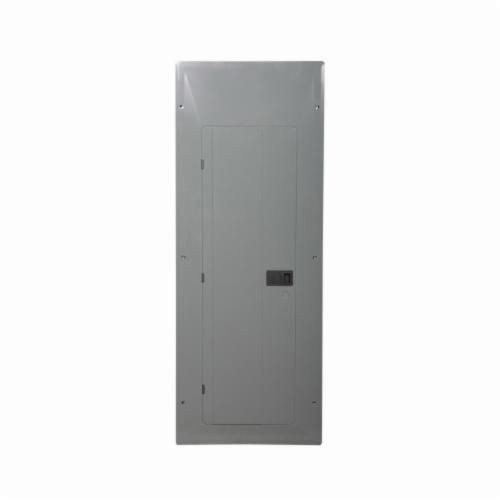

EATON 3BR4242L200 3-Phase Metallic Main Lug Loadcenter, 120/208Y/240 VAC, 200 A, 42 Poles, 25 kA Interrupt

Selected 3BR4242L200EATON 3BR4242L200 3-Phase Metallic Main Lug Loadcenter, 120/208Y/240 VAC, 200 A, 42 Poles, 25 kA Interrupt
3BR4242L200EATON 3BR4242L200 3-Phase Metallic Main Lug Loadcenter, 120/208Y/240 VAC, 200 A, 42 Poles, 25 kA Interrupt

Documents

Short Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Features

  • Flexible neutral design
  • Tangential main knockout
  • Single keyhole mounting
  • Factory pre attached neutral bonding strap
  • Aluminum bus
  • No feed through lugs
  • Bottom or top feed location
  • It can accommodate copper/aluminum wires at 60/75 deg C
  • Combination mounting
  • Aluminum Bus housing

Specification

Housing Material
Aluminum
Interrupt Rating
25 kA
Mounting Type
Surface
Number of Circuits
42
Number Of Poles
42
Number of Spaces
42
Minimum Order Qty
1
Order Interval
1
Video
https://youtu.be/rexdDTN9sfQ
Amperage Rating
200 A
Breaker Type
BWH
Enclosure Type
NEMA 1
Voltage Rating
120/208Y/240 VAC
Wiring Configuration
4-Wire
Application
Residential
Includes
Combination Cover
Standard & Approvals
UL 67/50
Type
Three Phase
Enclosure Box Size
L1
Dimensions
3.88 in L x 14.31 in W x 40.7 in H
Catalog ID
C-H3BR4242L200
Wire Size
1 AWG to 300 kcmil
