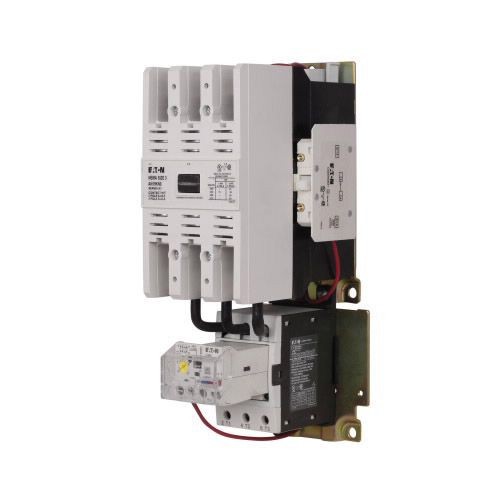

EATON AN19KN0A5E100 Freedom Full Voltage Open NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 3 Enclosure
EATON AN19KN0A5E100 Freedom Full Voltage Open NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 3 Enclosure
SKU: C-HAN19KN0A5E100
Manufacturer Part Number: AN19KN0A5E100
UPC: 786685415529
Documents
Features
- Horizontal mounting
- Standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
- Screw type power terminals have captive, backed-out self-lifting pressure plates with screws result in reduced wiring time
- Accessible terminals allow for ease of use and are convenient for simple wiring
- Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Motor Power | 50 hp |
| Number Of Poles | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 90 A |
| Coil Voltage | 110/120 VAC |
| Enclosure Type | NEMA 3 |
| Phase | 3 |
| Series | Freedom |
| Size | NEMA 3 |
| Type | Non-Reversing |
| Voltage Rating | 600 VAC |
| Full Load Current Rating | 20 to 100 A |
| Dimensions | 5.92 x 4.09 x 11.4 in |
| Catalog ID | C-HAN19KN0A5E100 |
