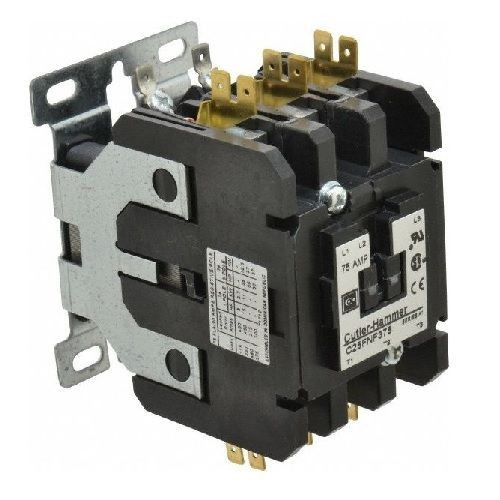

EATON C25FNF375A Non-Reversing Definite Purpose Control Contactor, 110 to 120 VAC V Coil, 75 A Inductive/90 A Resistive, 1NC-1NO Contact, 3 Poles

Selected EATON C25FNF375A Non-Reversing Definite Purpose Control Contactor, 110 to 120 VAC V Coil, 75 A Inductive/90 A Resistive, 1NC-1NO Contact, 3 Poles
EATON C25FNF375A Non-Reversing Definite Purpose Control Contactor, 110 to 120 VAC V Coil, 75 A Inductive/90 A Resistive, 1NC-1NO Contact, 3 Poles

Documents

Short Description

Eaton offers the most complete line of definite purpose (DP) contactors in the industry. Designed for heating, ventilation, air conditioning and refrigeration (HVACR) applications, Eaton's DP contactors are designed to handle the most challenging installations.

Features

  • Completely encased design impervious to dust and other environmental elements
  • 15-360A contactor ratings
  • Single two three and four-pole configurations
  • Open components and enclosed designs
  • 60 to 75 A two and three pole
  • 90 amp resistive load
  • Resistive load rating per pole

Specification

Frequency Rating
50/60 Hz
Maximum Load Current
75 A
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Catalog ID
C-HC25FNF375A
Coil Voltage
110 to 120 VAC
Connection Type
Quick
Dimensions
3.97 in L x 2.63 in W x 3.75 in H
Enclosure Type
Open With Metal Mounting Plate
Terminal
Box Lugs and Quick Connect
Type
Non-Reversing
Standard & Approvals
ARI 780/790 Standard, CE Certified, CSA Certified, EN 60947-4-1, IEC 60947-4-1, RoHS Compliance, UL File No. E1491, Guides NLDX2 and NLDX8
