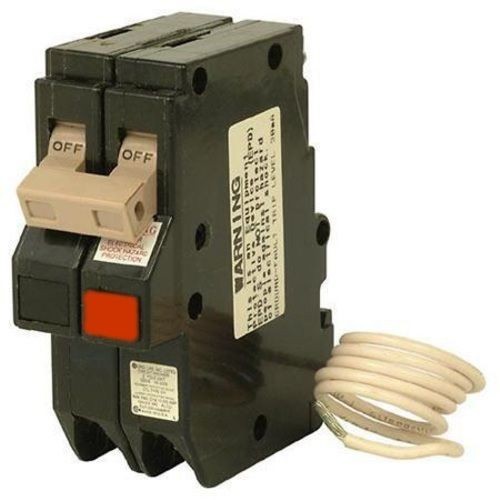

EATON CH230GFT Type CH Self-Test Ground Fault Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Common Trip

Selected CH230GFTEATON CH230GFT Type CH Self-Test Ground Fault Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Common Trip
CH230GFTEATON CH230GFT Type CH Self-Test Ground Fault Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Common Trip

Documents

Short Description

Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and tripfree handle design. Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short circuit conditions. Multipole breakers have internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.

Features

  • 2-pole type CHGFIs are designed for use in 3-wire, 120/240 VAC circuits, 120 VAC multiwire circuits employing common, neutral and 2-wire, 240 VAC circuits obtained from a 120/240 VAC source
  • 14 to 4 AWG copper/aluminum wire

Specification

Interrupt Rating
10
Number Of Poles
2
Phase
1
Trip Type
Common
Voltage Rating
120/240 VAC
Wire Size
14 to 4 AWG
Amperage Rating
30 A
Actuator Type
Handle
Connection Type
Plug-On
Enclosure Type
NEMA 1/3R
Dimensions
4-1/2 in L x 2-3/4 in W x 2 in H
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, UL 67, UL 489, File No. E11713, File No. E8741, File No. E3624, File No. E51287, CSA Certified, CSA File No. LR87196
Application
Heating, Air Conditioning and Refrigeration (HACR) Equipment Applications
Type
Type CH Self Test
Trip Range
5
Temperature Rating
60 to 75 deg C
