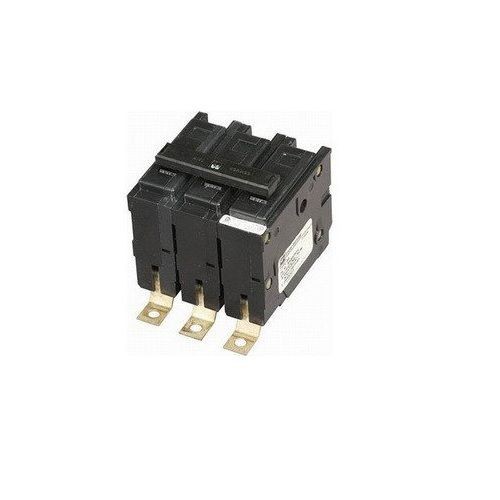

EATON CHB320 Type CHB Standard Molded Case Circuit Breaker, 240 VAC, 20 A, 10 kA Interrupt, 3 Poles, LI Trip

Selected CHB320EATON CHB320 Type CHB Standard Molded Case Circuit Breaker, 240 VAC, 20 A, 10 kA Interrupt, 3 Poles, LI Trip
CHB320EATON CHB320 Type CHB Standard Molded Case Circuit Breaker, 240 VAC, 20 A, 10 kA Interrupt, 3 Poles, LI Trip

Documents

Features

  • The CHB breaker continues to be available as a replacement breaker
  • When combined with the mounting base, CHB breakers were also used for surface and DIN rail mount cable-in/cable-out applications
  • Type CHB breaker handles trip to a position between ON and OFF and require movement to full OFF to reset the breaker
  • Contacts are sintered weld resistant silver tungsten
  • Inverse time element thermal element tripping
  • Cu/Al wire

Specification

Standard & Approvals
UL Listed, HACR Rated, Federal Specification W-P-131a
Temperature Rating
60 to 75 deg C
Trip Type
Long Time and Instantaneous
Voltage Rating
240 VAC
Wire Size
14 to 8 AWG
Actuator Type
Handle
Amperage Rating
20 A
Connection Type
Box Lug
Interrupt Rating
10 kA
Mounting Type
Bolt-On
Number Of Poles
3
Type
Type CHB Standard Thermal Magnetic
Dimensions
6 in L x 4 in W x 2 in H
Phase
3
