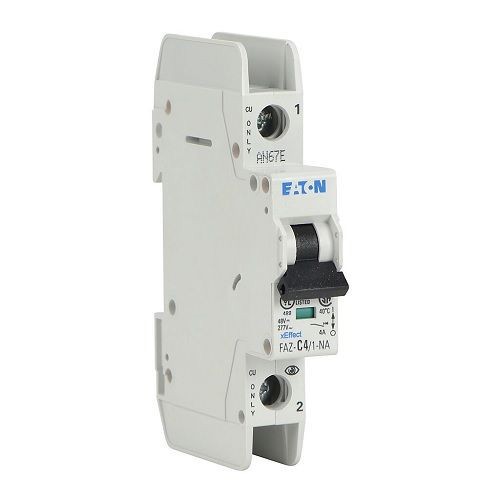

Cutler-Hammer FAZ-C4/1-NA-SP Type FAZ-NA Current Limiting Supplementary Protector, 480/277 VAC, 4 A, 10/14 kA Interrupt, 1 Pole, Thermal Magnetic/5 to 10X in Trip

Selected FAZ-C4/1-NA-SPCutler-Hammer FAZ-C4/1-NA-SP Type FAZ-NA Current Limiting Supplementary Protector, 480/277 VAC, 4 A, 10/14 kA Interrupt, 1 Pole, Thermal Magnetic/5 to 10X in Trip
FAZ-C4/1-NA-SPCutler-Hammer FAZ-C4/1-NA-SP Type FAZ-NA Current Limiting Supplementary Protector, 480/277 VAC, 4 A, 10/14 kA Interrupt, 1 Pole, Thermal Magnetic/5 to 10X in Trip

Short Description

Eaton offers a full range of DIN-rail miniature circuit breakers up to 40 A current rating for feeder and branch circuit protection. breakers comply with the latest national and international standards including UL 489. 2 levels of circuit protection available, one for medium inrush startup currents to provide protection for small transformers, pilot devices, etc and one with a magnetic range to allow for higher inrush levels during startup usually seen with motors.

Features

  • Current limiting design provides fast short circuit interruption that reduces the let through energy that can damage the circuit
  • Thermal magnetic over current protection
  • Trip-free design breaker can not be defeated by holding the handle in the on position
  • A color coded red/green indicator provides immediate visual indication of device status (green for off red for ON) and isolation function
  • Power to the circuit breakers can be fed from the line or load side
  • Captive screws cannot be lost
  • To save installation time, bus connectors and feeder terminal facilitate mounting and wiring of multiple miniature circuit breaker arrays in control panel assemblies
  • SWD (switching duty) suitable for switching fluorescent lighting loads (in = 20 A)
  • C curve devices are suitable for applications where medium levels of inrush current are expected
  • C curve devices provide a medium magnetic trip point

Specification

Frequency Rating
50/60 Hz
Material
Nylon
Mounting Type
DIN Rail
Number Of Poles
1
Temperature Rating
-40 to 75 deg C
Standard & Approvals
UL 489, CSA C22.2 No. 235, IEC 60 947-2, CE Marked, CCC Marked, ABS Approved, VDE Approved, HACR Rated, SWD Rated
Enclosure Type
IP20
Amperage Rating
4 A
Application
Convenience Receptacle Circuits, Motor Control Circuits, Load Circuits Leaving The Equipment, HACR Equipment, PLC I/O Points, Computers, Power Supplies, Control Instrumentation, Relays, UPS, Power Conditioners and Circuit Protection Applications
Voltage Rating
480/277 VAC
Type
Type FAZ-NA Current Limiting
Trip Type
Thermal Magnetic/5 to 10X in
Interrupt Rating
10/14 kA
Connection Type
Standard Terminal
Actuator Type
Toggle Lever
Dimensions
0.7 in L x 2.97 in W x 4.13 in H
EANUCC13
4015081636280
Wire Size
18 to 6 AWG
