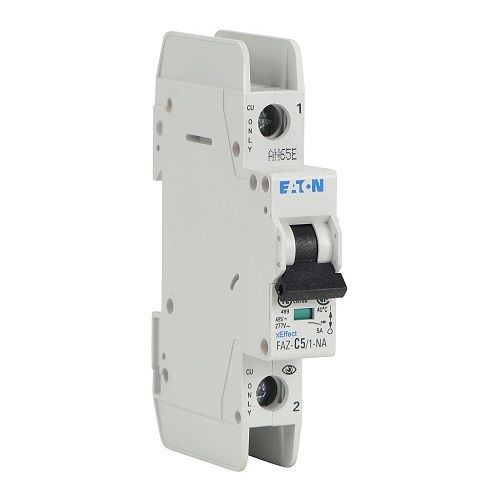

Cutler-Hammer FAZ-C5/1-NA-SP FAZ-NA Type FAZ-NA Miniature Circuit Breaker, 277/480 VAC, 5 A, 10 to 14 kA Interrupt, 1 Poles, 5 to 10X /n/C-Curve/Shunt/Thermal Magnetic Trip

Selected FAZ-C5/1-NA-SPCutler-Hammer FAZ-C5/1-NA-SP FAZ-NA Type FAZ-NA Miniature Circuit Breaker, 277/480 VAC, 5 A, 10 to 14 kA Interrupt, 1 Poles, 5 to 10X /n/C-Curve/Shunt/Thermal Magnetic Trip
FAZ-C5/1-NA-SPCutler-Hammer FAZ-C5/1-NA-SP FAZ-NA Type FAZ-NA Miniature Circuit Breaker, 277/480 VAC, 5 A, 10 to 14 kA Interrupt, 1 Poles, 5 to 10X /n/C-Curve/Shunt/Thermal Magnetic Trip

Short Description

Optimum product quality, tested reliability and safety standards for best protection of personnel, installations and plant. Eaton FAZ-NA and FAZ-NA-L DIN-rail mountable circuit breakers are designed for use in branch service applications.

Features

  • Current limiting design provides fast short circuit interruption that reduces the let through energy that can damage the circuit
  • Three levels of short circuit protection, categorized by B, C and D curves
  • Trip-free design breaker can not be defeated by holding the handle in the on position
  • Captive screws cannot be lost
  • Field installable shunt trip and auxiliary switch subsequent mounting
  • Contact position indicator red - green
  • Possibility for sealing the toggle in ON/OFF position

Specification

Standard & Approvals
VDE Approved, CSA C22.2 No. 5, CE Marked, NEC Certified, CEC, IEC 60 947-2, UL 489 File No. E235139
Temperature Rating
40 deg C
Trip Type
5 to 10X /n/C-Curve/Shunt/Thermal Magnetic
Voltage Rating
277/480 VAC
Wire Size
18 to 6 AWG
Amperage Rating
5 A
Connection Type
Screw/Standard Terminal
Frequency Rating
50/60 Hz
Interrupt Rating
10 to 14 kA
Mounting Type
DIN Rail
Number Of Poles
1
EANUCC13
4015081636297
Type
Type FAZ-NA
Dimensions
4.13 in H x 0.7 in W x 2.97 in D
Series
FAZ-NA
