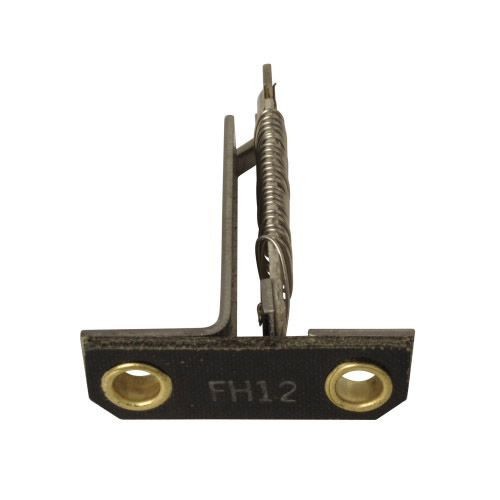

EATON FH12 Type B100 Overload Relay Heater
EATON FH12 Type B100 Overload Relay Heater
SKU: C-HFH12
Manufacturer Part Number: FH12
UPC: 786678629230
Features
- Select heater coils based on full load current (FLA) shown on motor nameplate
- Heater coils are rated to protect 40 deg C rise and a service factor of 1.15
- Single-phase requires 2 heaters, three-phase requires 3 heaters
- Used with starter sizes 0, 1 and 2
- Type A and B overload relay
- 0.58 to 0.63 A, 0.71 to 0.77 A non-compensating full load current
Specification
| Full Load Current Rating | 0.63 to 0.68/0.72 to 0.79 A |
|---|---|
| Series | A200/B100 |
| Trip Type | Thermal/Fast Trip |
| Standard & Approvals | UL Listed, CSA Certified |
| Enclosure Type | NEMA 0/1/2 |
