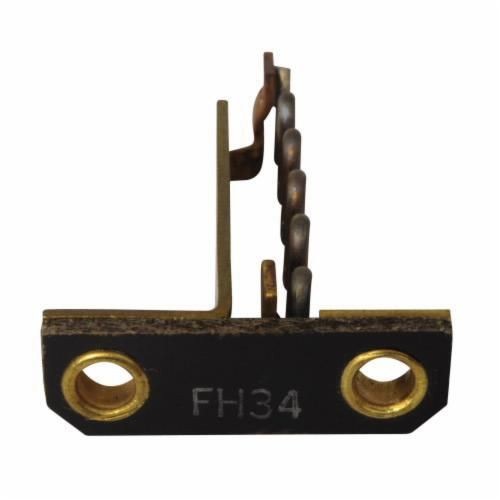

EATON FH34 Type B100 Overload Relay Heater
EATON FH34 Type B100 Overload Relay Heater
SKU: C-HFH34
Manufacturer Part Number: FH34
UPC: 786678629896
Features
- Select heater coils based on full load current (FLA) shown on motor nameplate
- Heater coils are rated to protect 40 deg C rise and a service factor of 1.15
- Single-phase requires 2 heaters, three-phase requires 3 heaters
- Used with starter sizes 0, 1 and 2
- Type A and B overload relay
- 4.56 to 5 A, 5.6 to 6 A non-compensating full load current
Specification
| Full Load Current Rating | 4.88 to 5.3/5.7 to 6.2 A |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Series | A200/B100 |
| Trip Type | Thermal/Fast Trip |
| Standard & Approvals | UL Listed, CSA Certified |
| Enclosure Type | NEMA 0/1/2 |
| Catalog ID | C-HFH34 |
