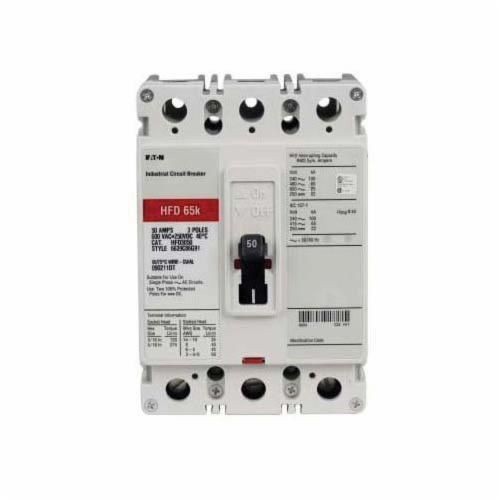

Cutler-Hammer HFD3060 C Series Type HFD Molded Case Circuit Breaker, 600 VAC/250 VDC, 60 A, 65 kA Interrupt, 3 Poles, Non-Interchangeable/Thermal Magnetic Trip
Cutler-Hammer HFD3060 C Series Type HFD Molded Case Circuit Breaker, 600 VAC/250 VDC, 60 A, 65 kA Interrupt, 3 Poles, Non-Interchangeable/Thermal Magnetic Trip
SKU: C-HHFD3060
Manufacturer Part Number: HFD3060
UPC: 786679175866
Features
- All series C F-frame circuit breakers are HACR rated
- All circuit breakers 10 through 50 amperes are suitable for HID (high intensity discharge) use
- All F-frame circuit breakers are suitable for reverse feed use
Specification
| Frame | F |
|---|---|
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 65 kA |
| Number Of Poles | 3 |
| Series | C Series |
| Temperature Rating | 40 deg C |
| Trip Type | Non-Interchangeable/Thermal Magnetic |
| Type | Type HFD |
| Voltage Rating | 600 VAC/250 VDC |
| Standard & Approvals | UL Listed |
| Amperage Rating | 60 A |
| Dimensions | 3.38 in L x 4.13 in W x 6 in H |
