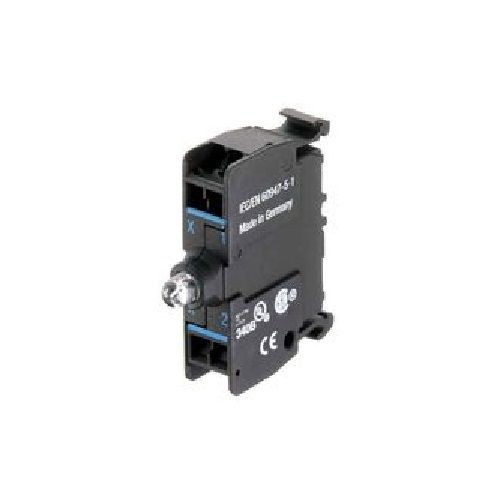

EATON M22-LED230-R Illuminated Light Unit, 22.5 mm, LED Lamp, 85 to 264 VAC, Screw Terminal, Red
EATON M22-LED230-R Illuminated Light Unit, 22.5 mm, LED Lamp, 85 to 264 VAC, Screw Terminal, Red
SKU: C-HM22-LED230-R
Manufacturer Part Number: M22-LED230-R
UPC: 786685277615
Features
- 5 to 15 mA rated operational current
- 0.33 W at 230 V power consumption
Specification
| Lamp Type | LED |
|---|---|
| Mounting Type | Front |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | C-HM22-LED230-R |
| Color | Red |
| Dimensions | 1.46 in L x 1.18 in W x 1.03 in H |
| Series | M22 |
| Size | 22.5 mm |
| Terminal | Screw |
| Type | Illuminated |
| Voltage Rating | 85 to 264 VAC |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, CSA Certified, UL Listed, CE Marked, HACR Rated |
