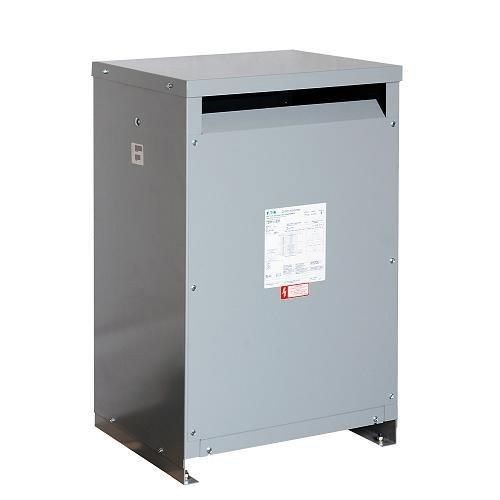

Cutler-Hammer V48M28T30EE General Purpose Transformer, 480 VAC Primary, 208/120 VAC Secondary, 30 kVA, 60 Hz, 3 ph Phase

Cutler-Hammer V48M28T30EE General Purpose Transformer, 480 VAC Primary, 208/120 VAC Secondary, 30 kVA, 60 Hz, 3 ph Phase
SKU: C-HV48M28T30EE
Manufacturer Part Number: V48M28T30EE
UPC: 786680019340
Features
- Ventilated, NEMA 2 enclosure standard
- Suitable for indoor applications, outdoors when weathershields are also installed
- 150 deg C rise standard, 115 deg C or 80 deg C rise optional
- Available in Single phase ratings 15 to 167 kVA, 600 volts primary (DS-3)
- Available in three-phase ratings 15 to 1500 kVA and up to 600 volts primary (DT-3)
- Application Description: NEMA TP-1-2002 compliant energy-efficient transformers are specifically designed to meet the energy efficiency standards set forth in NEMA standards publication, TP-1- 2002, "guide for determining energy efficiency for distribution transformers" surveys have shown that the average loading of low voltage dry-type distribution transformers, over a 24-hour period, is approximately 35%, NEMA TP-1 compliant transformers are optimized to offer maximum efficiency at 35% of nameplate rating
- 60 Hz operation (except as noted)
- Short-term overload capability as required by ANSI
- Meet NEMA ST-20 sound levels
- Meet federal energy efficiency requirements for low voltage dry-type distribution transformers effective as of January 1, 2007
- All EATON dry-type distribution and control transformers are built and tested in accordance with applicable NEMA, ANSI and IEEE Standards, All 600 volt class transformers are UL listed unless otherwise noted
- EATON manufactured dry-type distribution transformers are seismically qualified and exceed requirements of the Uniform Building Code (UBC), International Building Code (IBC) and California Code Title 24
- Aluminum winding coil
- 912B frame
- WS38 weathershield
- NEMA TP-1 Efficient
Specification
Frequency Rating | 60 |
---|---|
Insulation | 220 |
Mounting Type | Upright |
Phase | 3 |
Power Rating | 30 |
Primary Voltage | 480 |
Standard & Approvals | UL Listed |
Enclosure Type | NEMA 1 |
Number of Taps | 2/4/2025 12:00:00 AM |
Dimensions | 16.5 in L x 23 in W x 32.02 in H |
Type | General Purpose |
Temperature Rating | 150 |
Secondary Voltage | 208/120 |
