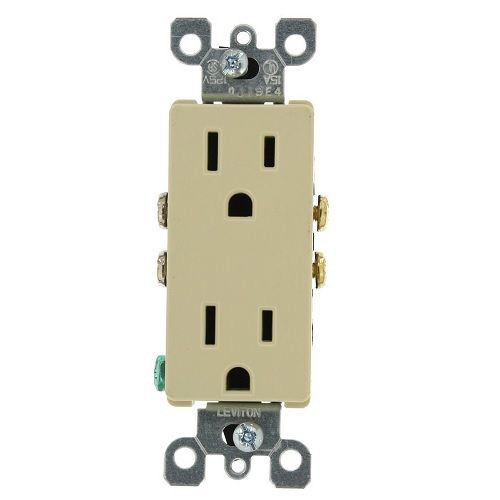

Leviton® Decora® 5325-I Duplex Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory

Selected Leviton® Decora® 5325-I Duplex Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Leviton® Decora® 5325-I Duplex Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory

Documents

Short Description

Leviton® comprehensive Residential Grade Receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both Decora® and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.

Features

  • Terminal screws accept up to no 12 AWG copper or copper clad wire
  • Double wipe power contacts for reliable conductivity and plug retention
  • Heavy gauge zinc plated steel mounting strap

Specification

Grade
Residential
Material
Thermoplastic
NEMA Rating
NEMA 5-15R
Number Of Poles
2
Number of Wires
3
Temperature Rating
-40 to 60 deg C
Terminal Type
Quickwire Push-In/Side Wired
Voltage Rating
125 VAC
Application
Commercial Applications
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, CSA Certified (File LR-406), NOM (057), UL Listed (File E13399), UL 94 Flammability Rated
Amperage Rating
15 A
Color
Ivory
Dimensions
4.2 in H x 1.31 in W x 0.98 in D
