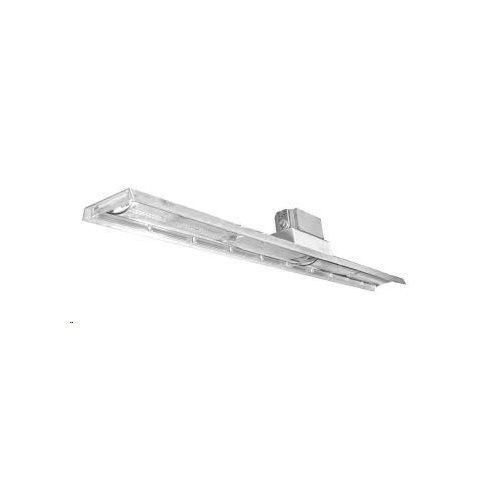

SafeSite® LTF3C4M2P Gen II Top Conduit LED Linear Fixture, LED Lamp, 100 to 277 VAC, Dual Coated Housing
Selected SafeSite® LTF3C4M2P Gen II Top Conduit LED Linear Fixture, LED Lamp, 100 to 277 VAC, Dual Coated Housing
SafeSite® LTF3C4M2P Gen II Top Conduit LED Linear Fixture, LED Lamp, 100 to 277 VAC, Dual Coated Housing
SKU: DIALTF3C4M2P
Manufacturer Part Number: LTF3C4M2P
Documents
Features
- -40 to 65 deg C ambient temperature
- >0.9 power factor
- <20% total harmonic distortion
- 4 kV line to line, 4 kV line to ground surge protection
- Circular light distribution pattern
- 106 Lumens/W
Specification
| Housing Material | Copper-Free Aluminum |
|---|---|
| Lamp Type | LED |
| Lens Type | Clear Polycarbonate |
| Light Color | Cool White |
| Lumens | 7000 Lumens |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Average Life | 100000 hr |
| Catalog ID | DIALTF3C4M2P |
| Color Temperature | 5000 K |
| Enclosure Type | NEMA 4X/IP66 |
| Fixture Wattage | 66 W |
| Application | For use in hazardous locations |
| Standard & Approvals | UL 844, 1598/A, 8750, CSA C22.2 File No.137, CID2 A, B, C, D, CIID1 E, F, G, CIID2 F, G, CIII |
| Voltage Rating | 100 to 277 VAC |
| Dimensions | 4 ft L |
| Color Rendering Index (CRI) | 75 |
