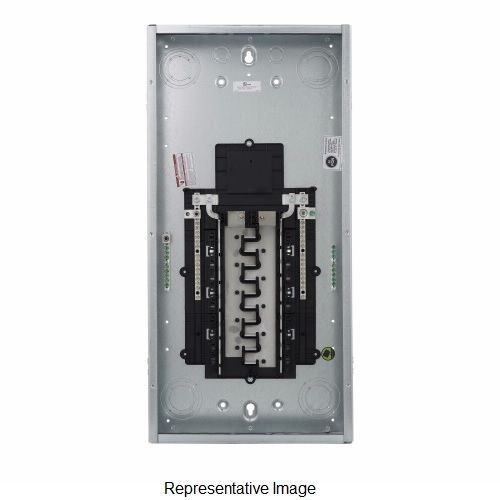

EATON BRP20NC200R 1-Phase Load Center, 120/240 VAC, 1 Poles, 10 kA Interrupt

Selected EATON BRP20NC200R 1-Phase Load Center, 120/240 VAC, 1 Poles, 10 kA Interrupt
EATON BRP20NC200R 1-Phase Load Center, 120/240 VAC, 1 Poles, 10 kA Interrupt

Documents

Short Description

Load centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Features

  • The BR plug-on neutral portfolio from EATON offers a unique design that offers improved safety, ease of installation and leaves the end result with a clean and professional look and feel
  • Unique self-leveling tabs to allow for quick drywall offset
  • The short-body BR electronic circuit breakers are optimized to save gutter space and installation time with an easier, more succinct installation process
  • Added key hole hanging feature on cover for ease of installation
  • Common drive types on screw connections for added simplicity and convenience
  • In board neutral to increase the gutter space for easier installation of conductors
  • Backed-out neutral screws to allow for a quick connection of ground and neutral conductors
  • Upgraded to embossed circuit numbers for a more clean and professional look
  • Copper bus
  • Convertible main lug
  • NEMA 3R rain proof enclosure
  • ANSI 61 gray trim

Specification

Housing Material
Sheet Steel
Interrupt Rating
10 kA
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
200 A
Breaker Type
BR
Catalog ID
C-HBRP20NC200R
Dimensions
3.88 in L x 14.31 in W x 29.13 in H
Enclosure Box Size
X5
Enclosure Type
NEMA 3R
Type
1-Phase
Voltage Rating
120/240 VAC
Standard & Approvals
ARRA Compliant, BAA Compliant, RoHS Compliant, UL 50/67/E8741
Breaker Mounting
Plug-On Neutral
Number of Spaces
20
Number of Circuits
40
Includes
Cover
Wiring Configuration
3
Bus Rating
200 A
