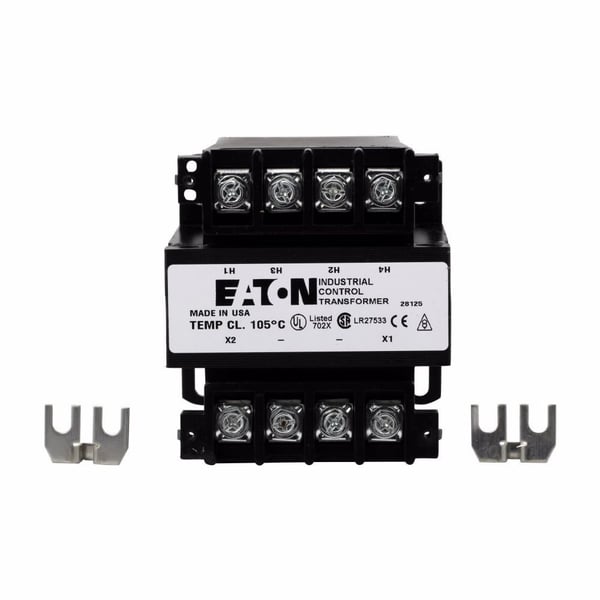

EATON CE0100E5ECE Type MTE Control Transformer, 200/220/440, 208/230/460, 240/480 V Primary, 23/110, 24/115, 25/120 V Secondary, 100 VA Power Rating, 50/60 Hz, 1 ph Phase

Selected CE0100E5ECEEATON CE0100E5ECE Type MTE Control Transformer, 200/220/440, 208/230/460, 240/480 V Primary, 23/110, 24/115, 25/120 V Secondary, 100 VA Power Rating, 50/60 Hz, 1 ph Phase
CE0100E5ECEEATON CE0100E5ECE Type MTE Control Transformer, 200/220/440, 208/230/460, 240/480 V Primary, 23/110, 24/115, 25/120 V Secondary, 100 VA Power Rating, 50/60 Hz, 1 ph Phase

Documents

Short Description

Control transformers provide stepped down voltages to machine tool control devices, enabling control circuits to be isolated from all power and lighting circuits. This allows the use of grounded or ungrounded circuits that are independent of the power or lighting grounds, thus, greater safety is afforded the operator. The control transformer line is particularly adaptable on applications where compact construction is demanded.

Features

  • Epoxy encapsulated coil design
  • Copper magnet wire for high quality, efficient operation
  • Laminations of high quality, silicon steel minimize core losses and optimize performance
  • Performance meets/exceeds requirements of ANSI/NEMA ST-1
  • Regulation exceeds ANSI/NEMA requirements for all ratings
  • Non-short circuit proof transformer, isolation-type
  • No taps

Specification

Frequency Rating
50/60 Hz
Insulation
130 deg C
Minimum Order Qty
1
Order Interval
1
Phase
1 ph
Power Rating
100 VA
Temperature Rating
55 deg C
Type
Type MTE
Application
Industrial Applications
Standard & Approvals
UL 5085 File No. E46323, cUL File No. E46323, UL 702X, CSA Certified, CE Marked, IEC 61558-2, RoHS Compliant
Secondary Voltage
23/110, 24/115, 25/120 V
Primary Voltage
200/220/440, 208/230/460, 240/480 V
Dimensions
4.37 in L x 3.74 in W x 3.189 in H
Connection Type
Molded-In
Catalog ID
C-HCE0100E5ECE
