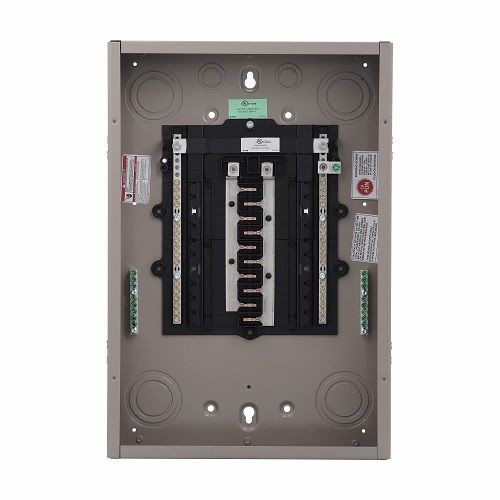

EATON CHP22N125X2 1-Phase Convertible Loadcenter, 120/240 VAC, 10 kA Interrupt

Selected CHP22N125X2EATON CHP22N125X2 1-Phase Convertible Loadcenter, 120/240 VAC, 10 kA Interrupt
CHP22N125X2EATON CHP22N125X2 1-Phase Convertible Loadcenter, 120/240 VAC, 10 kA Interrupt

Short Description

Load centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Features

  • Quicker, easier and cleaner than the competition
  • The CH plug-on neutral Portfolio offers a unique design that offers improved safety, ease of installation and leaves the end result with a clean and professional look and feel
  • Convertible main lug
  • NEMA 1 indoor with no cover (to be ordered separately)

Specification

Type
1-Phase
Voltage Rating
120/240 VAC
Wiring Configuration
3-Wire
Standard & Approvals
BAA Compliant, UL 50/67/E8741
Minimum Order Qty
1
Order Interval
1
Bus Rating
125 A
Enclosure Type
NEMA 1
Interrupt Rating
10 kA
Number of Spaces
22
Number of Circuits
44
Housing Material
16 ga Sheet Steel
Enclosure Box Size
21 in
Dimensions
21 in L x 14.31 in W x 3.88 in H
Catalog ID
C-HCHP22N125X2
Breaker Type
CH
Breaker Mounting
Plug-On Neutral
Video
https://www.youtube.com/watch?v=1Z5-U-A4frU
Application
Electrical Assemblies and Panels Applications
