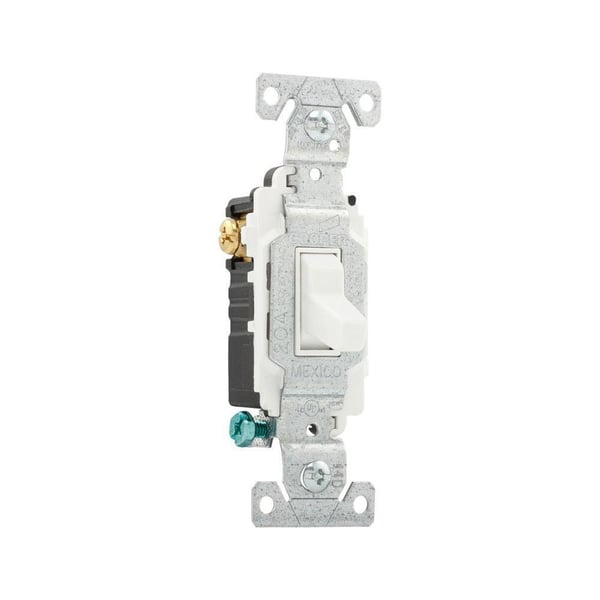

EATON Arrow Hart CSB320W 3-Way Specification Grade Toggle Switch, 120/277 V, 20 A, 1/2 hp Power Rating
EATON Arrow Hart CSB320W 3-Way Specification Grade Toggle Switch, 120/277 V, 20 A, 1/2 hp Power Rating
SKU: EAGCSB320W
Manufacturer Part Number: CSB320W
UPC: 032664559143
Documents
Short Description
Features
- Patent pending spring cup toggle design for robust actuation
- Terminals accept up to 10 AWG solid or stranded wire
- 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
- Terminal screws are backed out and ready to wire
- Tri-combo head mounting and terminal screws ease installation
- 14 to 10 AWG terminal accommodation
- Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- 2.38 in L screw to screw
- Nylon toggle
Specification
| Voltage Rating | 120/277 V |
|---|---|
| Material | PVC |
| Number Of Poles | 1 |
| Color | White |
| Contact Rating | 20 A at 120/277 VAC |
| Environmental Conditions | -20 to 60 deg C Operating Temperature |
| Amperage Rating | 20 A |
| Mounting | Wall |
| Actuator | Toggle |
| Terminal Type | Screw |
| Power Rating | 1/2 hp |
| Type | 3-Way Specification Grade |
| Dimensions | 1.31 in W x 1.05 in D |
| Series | CS Series |
| Operating Cycles | 50000 Cycles |
