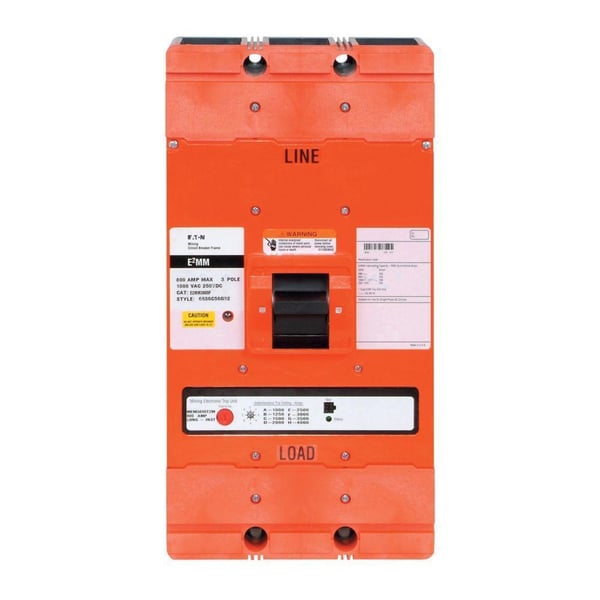

EATON E2MM3800MNW C Series Type E2M Complete Specialty Mining Molded Case Circuit Breaker, 1000Y/577 VAC/250 VDC, 800 A, 18/22 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Selected EATON E2MM3800F 2
EATON E2MM3800F 2

Documents

Short Description

The Eaton E2 Mining Molded Case Circuit Breaker offers users a higher quality experience and a safer work environment. Rugged design and tested dependability for harsh and hazardous environments are two of the reasons Eaton has been the undisputed leader in electric power distribution to the mining industry for 40 years. The mining molded case circuit breaker protects all sizes of trailing cable defined by MSHA, and as a result, minimizes panel design and reduces inventory requirements. Available in 7 frame sizes up to 2000A and 1000VAC.

Features

  • Thorough in-plant testing ensures quality, dependability and reliability
  • Simple and convenient solution with quick turnaround on many frame styles
  • Basic tune-up clean, test, re-certify
  • Without terminals
  • 35 kA at 480 VAC, 25 kA at 600 VAC, 18 kA at 1000Y/577 VAC, 22 kA at 250 VDC interrupt rating

Specification

Frequency Rating
50/60 Hz
Dimensions
4.06 x 8.25 x 16 in
Number Of Poles
3
Type
Type E2M Complete Specialty
Series
C Series
Frame
M
Trip Type
Thermal Magnetic
Temperature Rating
40 deg C
Interrupt Rating
18/22 kA
Voltage Rating
1000Y/577 VAC/250 VDC
Amperage Rating
800 A
Trip Range
1500 to 3000 A
