EATON TMC3-100-2 TMC3 Cable Gland, Aluminum

Selected Eaton TMC3 075 2

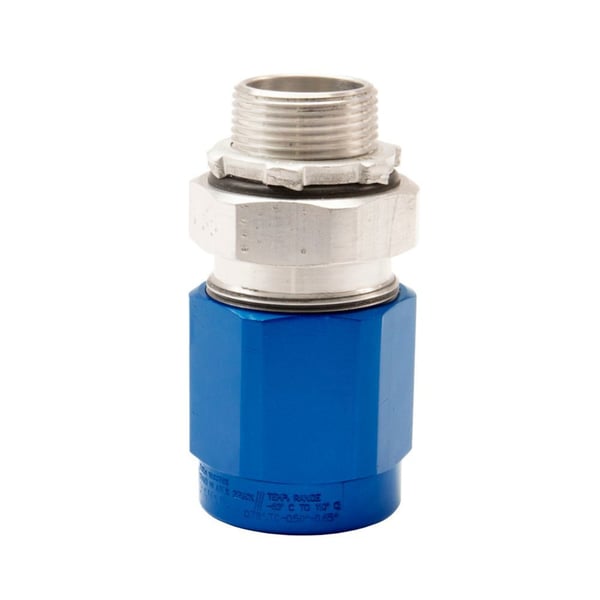

Eaton TMC3 075 2

Documents

Short Description

For use with metal-clad cable, TECK corrugated cable, or non-armored tray cables, Crouse-Hinds series TMC3 cable glands provide a means for terminating at junction boxes, control centers, panelboards and enclosures for motor control and electrical distribution equipment. TMC3 cable glands form a mechanical watertight connection and may be installed in Class I, Division 2 locations, provided there are no arcing and sparking risks in accordance with NEC501.10B.

Features

  • Designed for versatility - dual certified for armored (MC/TECK) and non-armored (tray) cables
  • Fast and easy installation - two-piece construction with increased size of wrenching surfaces on body and nut
  • Multiple thread size options per sealing range eliminates need for adapters or reducers
  • Full range of sizes from 1/2 in to 2 in NPT available
  • Standard gasket and locknut ease installation and improve ingress protection (IP66 and NEMA 4X)
  • Meets same bonding requirements as Myers hubs when installed in thin wall enclosures
  • Corrosion-resistant material options copper-free aluminum, nickel-plated brass or 316 stainless steel
  • Cold Shrink kits available for extra protection in extreme environments
  • Blue, anodized industrial grade nut (aluminum version only)

Specification

Material
Aluminum
Dimensions
2.45 in H x 2.4 in W x 5.01 in L
