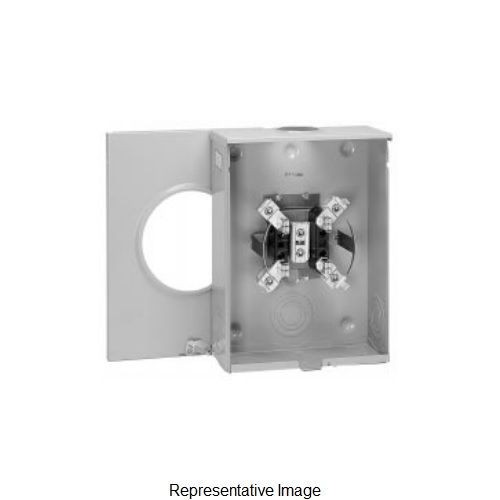

EATON UHT5R2392TTCH 5-Posiiton 3-Wire Horizontal Ganged Meter Socket, 600 VAC, 200 A, 1 ph Phase

Selected EATON UHT5R2392TTCH 5-Posiiton 3-Wire Horizontal Ganged Meter Socket, 600 VAC, 200 A, 1 ph Phase
EATON UHT5R2392TTCH 5-Posiiton 3-Wire Horizontal Ganged Meter Socket, 600 VAC, 200 A, 1 ph Phase

Short Description

EATON line of 1-position, self-contained meter sockets house the utilities electrical watthour meters in residential and commercial buildings. Choose from the widest range of utility approved sockets in the industry, including 100 to 320 A units and designs such as ring less, bypass, and more.

Features

  • Block assembly base exceeds 400 in-lb of torque
  • 1-piece, die-run enclosure
  • High visibility EATON name embossed on cover
  • Knockouts are installer friendly
  • Oversized 7/8 in Dia, heavy duty, steel lug screws
  • Slide nuts are captive
  • Horn bypass kit is field installable by changing out slide nut
  • Integral triplex or quadplex ground extruded in neutral lug
  • 100% plated bridge with 4-point mounting
  • KAIC rating up to 200 kAIC rating with specified overcurrent protection devices
  • Provides a complete EATON residential solution
  • Copper plated alloy jaws with reinforcing spring
  • (2) 1/0 AWG to 500 kcmil line, 8 AWG to 250 kcmil load

Specification

Hub Size
5 x 5 in
Hub Type
Large Open
Number of Jaws
4
Phase
1
Terminal Type
Line/Load
Type
3-Wire 5-Posiiton Horizontal Ganged Residential Service
Voltage Rating
600 VAC
Wire Size
1/0 AWG to 500 kcmil, 8 AWG to 250 kcmil
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed
Amperage Rating
200 A
Dimensions
5.38 in L x 54.78 in W x 14.13 in H
Cover Type
Ringless
Feed Type
Overhead/Underground
