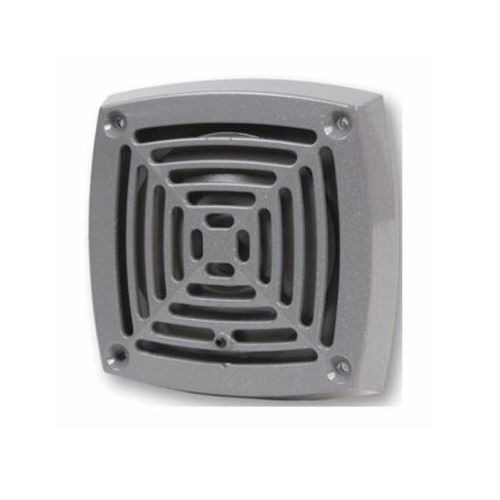

Edwards Signaling™ AdaptaHorn® 871P-E1 Low Current Vibrating Horn, 12 VDC, 0.27 A, 101 dB at 1 m/103 dB at 10 ft Sound, Outdoor, Panel Mount

Selected Edwards Signaling™ AdaptaHorn® 871P-E1 Low Current Vibrating Horn, 12 VDC, 0.27 A, 101 dB at 1 m/103 dB at 10 ft Sound, Outdoor, Panel Mount
Edwards Signaling™ AdaptaHorn® 871P-E1 Low Current Vibrating Horn, 12 VDC, 0.27 A, 101 dB at 1 m/103 dB at 10 ft Sound, Outdoor, Panel Mount

Short Description

The Edwards 870P AC and 871P DC series are low current, high decibel panel mount vibrating horns for heavy duty use. Supplied complete with gasket and UL listed to NEMA 4X enclosure requirements. Designed for semi-flush panel mounting, using supplied mounting template or installation on a 4 in square box. For NEMA 4X installation, mount to a NEMA 4X enclosure having a flat, smooth surface using supplied 1/8 in gasket in accordance with the installation instructions provided with the unit.

Features

  • PLC compatible models
  • Corrosion-resistant finish
  • Volume adjustable
  • Completely assembled
  • High decibel DC panel mount vibrating horns for heavy duty use

Specification

Material
Die Cast
Mounting Type
Panel
Voltage Rating
12 VDC
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed
Amperage Rating
0.27 A
Application
For panel boards and switchboards wherever a distinctive, urgent signal is required for timing, general alarm and warning
Type
Low Current
Sound Level
101 dB at 1 m/103 dB at 10 ft
Series
871P
Power Rating
3.2 VA
Includes
Gasket
Dimensions
4-5/8 in H x 1-7/8 in W
