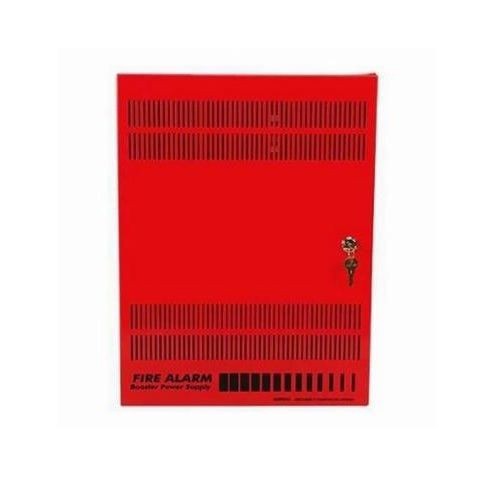

Edwards Signaling™ EBPS6A Booster Power Supply, 120 VAC, 220 to 240 VAC Input, 390 W Power Rating, 6.5 A, Panel Mount

Selected Edwards Signaling™ EBPS6A Booster Power Supply, 120 VAC, 220 to 240 VAC Input, 390 W Power Rating, 6.5 A, Panel Mount
Edwards Signaling™ EBPS6A Booster Power Supply, 120 VAC, 220 to 240 VAC Input, 390 W Power Rating, 6.5 A, Panel Mount

Short Description

The remote booster power supply is a self-contained 24 VDC power supply designed to augment fire alarm audible and visual power requirements. The booster contains all of the necessary circuits to monitor and charge batteries, control and supervise four Class B or two Class A notification appliance circuits (NACs) and monitor two controlling inputs from external sources.

Features

  • Allows for reliable filtered and regulated power to be installed where needed
  • Cost effective system expansion
  • Provides for Genesis and Enhanced Integrity notification appliance synchronization
  • Supports coded output operation
  • Self-restoring overcurrent protection
  • Multiple signal rates
  • Can be cascaded or controlled independently
  • Easy field configuration
  • On-board diagnostic LEDs identify wiring or internal faults
  • Standard Edwards keyed lockable steel cabinet with removable door
  • Accommodates 18 to 12 AWG wire sizes
  • Optional tamper switch
  • Dual battery charging rates

Specification

Frequency Rating
50/60 Hz
Height
17 in
Mounting Type
Panel
Power Rating
390 W
Series
EBPS
Width
13 in
Application
Dry Location, Indoor and Outdoor Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed, ULC Listed, CSFM Approved, MEA Approved
Case Material
Steel
Depth
3-1/2 in
Input Voltage
120 VAC, 220 to 240 VAC
Amperage Rating
6.5 A
