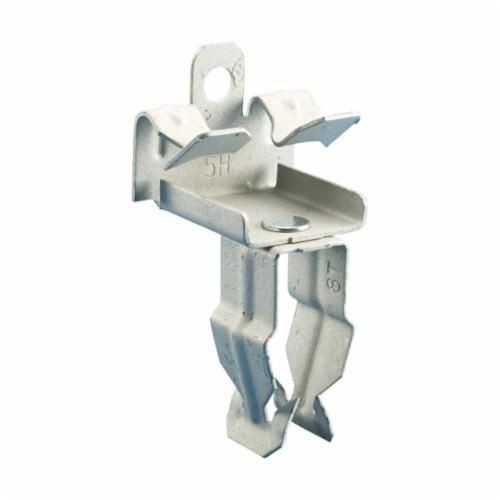

nVent ERICO 12P58 Conduit to Flange Clip, 3/4 in Conduit, 25 lb Load, 0.866 to 1.181 in OD, Spring Steel

Selected nVent ERICO 12P58 Conduit to Flange Clip, 3/4 in Conduit, 25 lb Load, 0.866 to 1.181 in OD, Spring Steel
nVent ERICO 12P58 Conduit to Flange Clip, 3/4 in Conduit, 25 lb Load, 0.866 to 1.181 in OD, Spring Steel

Documents

Features

  • Requires only a hammer to install
  • Available for EMT, rigid, IMT and aluminum conduit
  • Will pivot thru 360 degree
  • 25 lb Static load capacity
  • 3/4 in EMT, 1/2 in Rigid conduit size

Specification

Application
Datacom and Low Voltage
Standard & Approvals
cULus Listed, RoHS Exempted
Finish
Caddy Armour
Flange Size
5/16 to 1/2 in
Conduit Size
3/4 in
Outside Diameter
0.866 to 1.181 in
Mounting Type
Top
Load Capacity
25 lb
Material
Spring Steel
