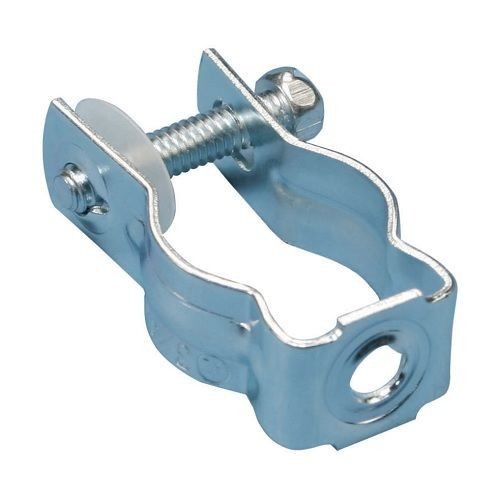

nVent ERICO CD3B Bolt Close Conduit/Pipe Clamp, 1-1/2 in Conduit, 200/50 lb Load, 1.41 to 1.74 in OD, Steel

Selected nVent ERICO CD3B Bolt Close Conduit/Pipe Clamp, 1-1/2 in Conduit, 200/50 lb Load, 1.41 to 1.74 in OD, Steel
nVent ERICO CD3B Bolt Close Conduit/Pipe Clamp, 1-1/2 in Conduit, 200/50 lb Load, 1.41 to 1.74 in OD, Steel

Short Description

Fixing, fastening and support products for use in electrical installation, datacom, telecom, fire protection, seismic and HVAC applications. ERICO Grounding, bonding, lightning protection and electrical rail connection solutions for commercial, industrial, utility, rail, alternative energy and telecom end user groups.

Features

  • Retained bolt and built-in nut means there are less parts to handle or drop
  • Combo head bolt works with slotted, hex, NO 3 Phillips or NO 2 Robertson drivers
  • 1-1/2 in EMT, 1-1/4 in Rigid size
  • 200 lb, 50 lb load capacity

Specification

Material
Steel
Outside Diameter
1.41 to 1.74 in
Minimum Order Qty
1
Order Interval
1
Finish
Electro Galvanized
Specifications
1/4 in Hole
Suitable For Use With
EMT and Rigid Conduit
Type
Bolt Close
Application
Datacom and Low Voltage, Electrical Fixing and Fastening, Hvac, Plumbing and Refrigeration
Standard & Approvals
cULus Certified and RoHS Compliant
Conduit Size
1-1/2 in
Catalog ID
CADCD3B
Load Capacity
200/50 lb
